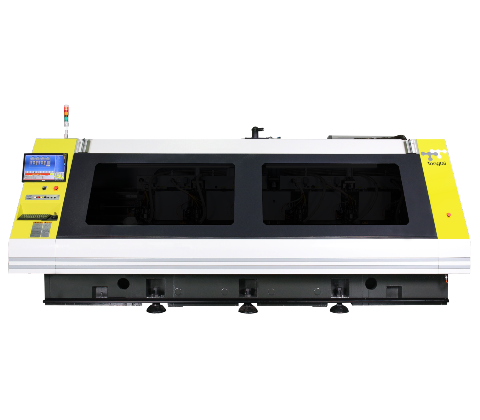

Home > Products > PCB Machine > PCB CNC routing machine > Routing Machine > TRM series (standard routing machine)Home > Products > PCB Machine > PCB CNC routing machine > Routing Machine > TRM series (standard routing machine)1. Tongtai CNC router machine (TRM series) uses servo motor and high-precision linear scale to improve the routing efficiency and accuracy stability of PCB routing process.
2. Using a high-speed spindle and CNC system equipped with servo motor and ball screw enables to control the positioning device. It is applicable for routing PCB panels and metal panels.
3. Applicable for routing PCB panels, metal panels, special design routing and milling process.
4. Optimization of new technology and structural ensure strong rigidity and stability of the structure. And space optimization reduces footprint and enhances the customer's factory utilization. Power-saving components and circuits are used to effectively save energy. It provides high-speed, high-precision machining capability and ultra-high stability.
| Item | Unit | TRM-122 | TRM-222 | TRM-422 | TRM-522 |
| Number of axes | Axis | 1 | 2 | 4 | 5 |
| Working area | mm | 560x720 (22''x28'') | |||
| Spindle speed | rpm | 60,000 (Opt. 80,000/125,000) | |||
| Tool capacity | PC/Axis | 100 (Opt. 200) | |||
| Tool diameter range | mm | 0.75~3.175 | |||
| XY axis drive system | Servo motor | ||||
| Z axis drive system | Servo motor | ||||
| XY axis moving speed | m/min | 30 | |||
| Z axis moving speed | m/min | 15 | |||
| Controller | SIEB&MEYER CNC 82 | ||||
| Air pressure | kg/cm2 | 7 | |||
| Dimensions (LxWxH) | mm | 1477x2180x1616 | 1892x2180x1616 | 3191x2180x1699 | 3761x2180x1699 |
| Weight | kg | 2700 | 3200 | 5200 | 6200 |
| Air consumption | L/min | 60/72 (Air bearing) | 120/144 (Air bearing) | 240/288 (Air bearing) | 300/360 (Air bearing) |
| Power requirements | kVA | 3kVA (Avg. 1.5kVA) | 6.8kVA (Avg. 2.8kVA) | 7.5kVA (Avg. 2.8kVA) | 10kVA (Avg. 3.8kVA) |
| Item | Unit | TRM-526BL | TRM-622 | TRM-625BL | TRM-626CL |
| Number of axes | Axis | 5 | 6 | 6 | 6 |
| Working area | mm | 686x813 (27''x32'') | 560x720 (22''x28'') | 635x813 (25''x32'') | 660x813 (26"x32") |
| Spindle speed | rpm | 60,000 (Opt. 80,000/125,000) | |||
| Tool capacity | PC/Axis | 100 (Opt. 200) | |||
| Tool diameter range | mm | 0.75~3.175 | |||
| XY axis drive system | Servo motor | ||||
| Z axis drive system | Servo motor | ||||
| XY axis moving speed | m/min | 30 | |||
| Z axis moving speed | m/min | 15 | |||
| Controller | SIEB&MEYER CNC 82 | ||||
| Air pressure | kg/cm2 | 7 | 7~8 | ||
| Dimensions (LxWxH) | mm | 4381x2180x1699 | 4811x2180x1699 | ||
| Weight | kg | 6850 | 7100 | 8000 | 8200 |
| Air consumption | L/min | 300/360 (Air bearing) | 300/440 (Air bearing) | ||
| Power requirements | kVA | 10kVA (Avg. 4kVA) | |||
