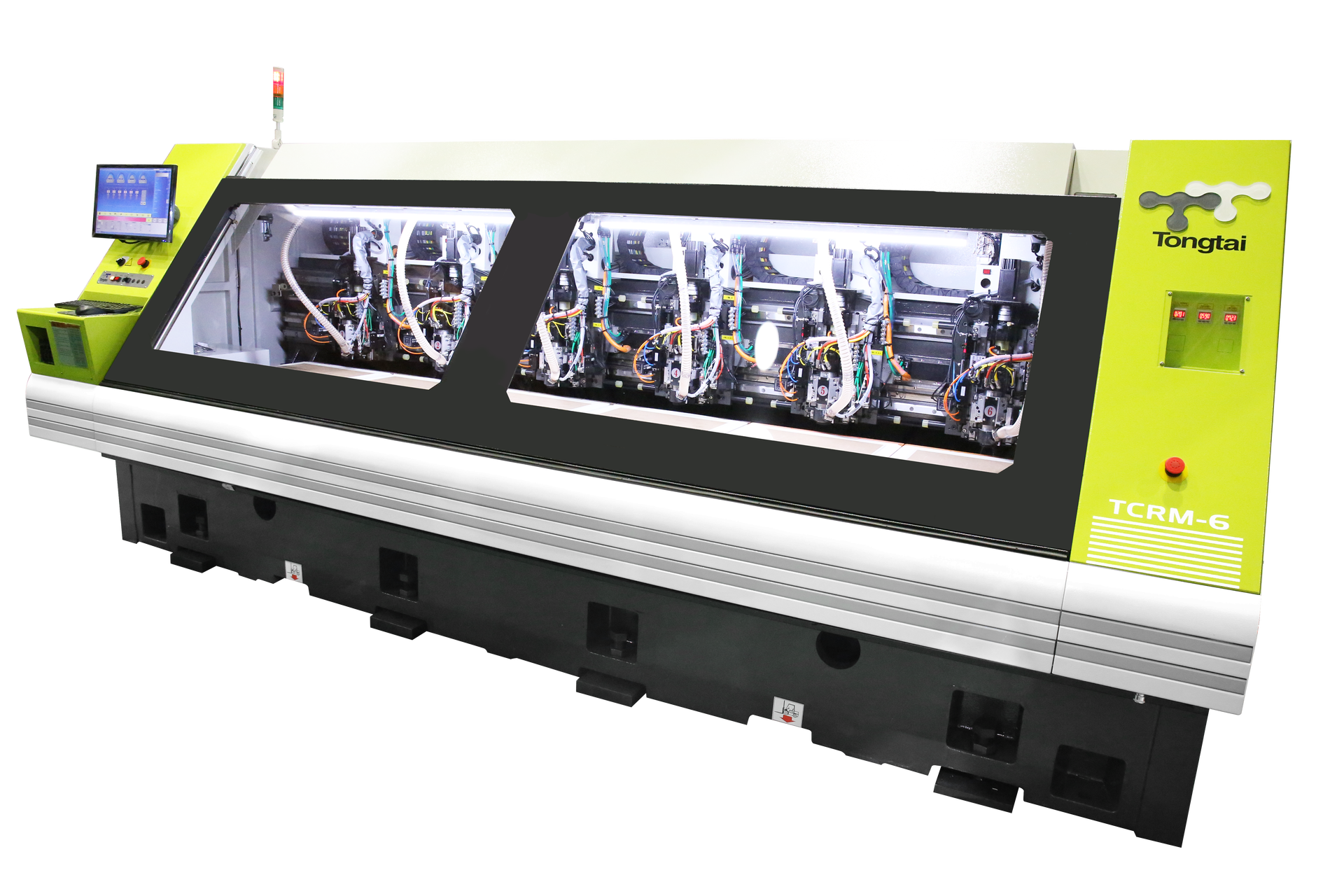

Home > Products > PCB Machine > PCB CNC routing machine > Routing Machine > TCRM series ( CCD each axis compensation molding machine)Home > Products > PCB Machine > PCB CNC routing machine > Routing Machine > TCRM series ( CCD each axis compensation molding machine)1. The angular position and expansion/contraction of the PCB boards can be offset by the independently controlled X, Y, and Z axes combined with CCD system.
2. Linear motor and high-precision linear scale are used on X and Y axes.
3. Each axis is equipped with a depth gauge and a vacuum chuck table system to ensure stable routing accuracy.
4. Applicable for depth routing of PCB panels, plating jigs, aluminum panels, etc.
| Item | Unit | TCRM-6 | TCRM-4CL |
| Number of axes | Axis | 6 | 4 |
| Working area | mm | 550x690 (22"x27'') | 660x813 (26"x32') |
| Spindle speed | rpm | 60,000/80,000/125,000 | |
| Tool capacity | PC/Axis | 300 | |
| Tool diameter range | mm | 0.75~3.175 | |
| XY axis drive system | Linear motor | ||
| Z axis drive system | Servo motor | ||
| Z axis moving speed | m/min | 30 | |
| CCD | Each axis | ||
| Controller | SIEB&MEYER CNC 84 (Opt. CNC 95) | ||
| Pressure Foot | Brush | ||
| Deep Control Mode | Platen Mechanism and Optical Encoders | ||
| Dimensions (LxWxH) | mm | 4205x2180x1782 | 3500x2205x1782 |
| Weight | kg | 10000 | 9000 |
| Air consumption | L/min | 360/510 | 240/400 |
| Power requirements | kVA | 20kVA (Avg. 16kVA dual chillers) | |
