Home > Products > Machine Tool > Tapping Center > Powerful Type > VTX-5[7]IIHome > Products > Machine Tool > Tapping Center > Powerful Type > VTX-5[7]IIMachine structure is optimized than the past. The rigidity of the X axis direction increases by 25%. Furthermore, the machining precision and quality is much better than the past.
Standardly equipped with BBT-30 dual contact spindle and roller type linear guideway to improve the machining capacity.
Ensures the dynamic stability under the rapid traverse 60m/min with max. 1.2G acceleration.
Standardly equipped with a servo-driven tool magazine with 21 tools. With the clamping error inspection function, it prevents the incorrect tool placement.
Standardly equipped with FANUC 0i-MF Plus controller.
| Specification | VTX-5[7]II |
| Table size(LxW) | 600[850]x400 mm |
| Max. loading capacity | 300 kg |
| X/Y/Z axis travel | 510[710]/400/300 mm |
| X/Y/Z axis rapid traverse | 60/60/60 m/min |
| Spindle taper | 7/24 Taper No.30 |
| Spindle speed | 12,000 rpm |
| Spindle motor | High torque type: 13/3.7 (7.5/5.5) kW ; High efficiency type: 26/9 (34/9) kW |
| Tool capacity | 21 pc |

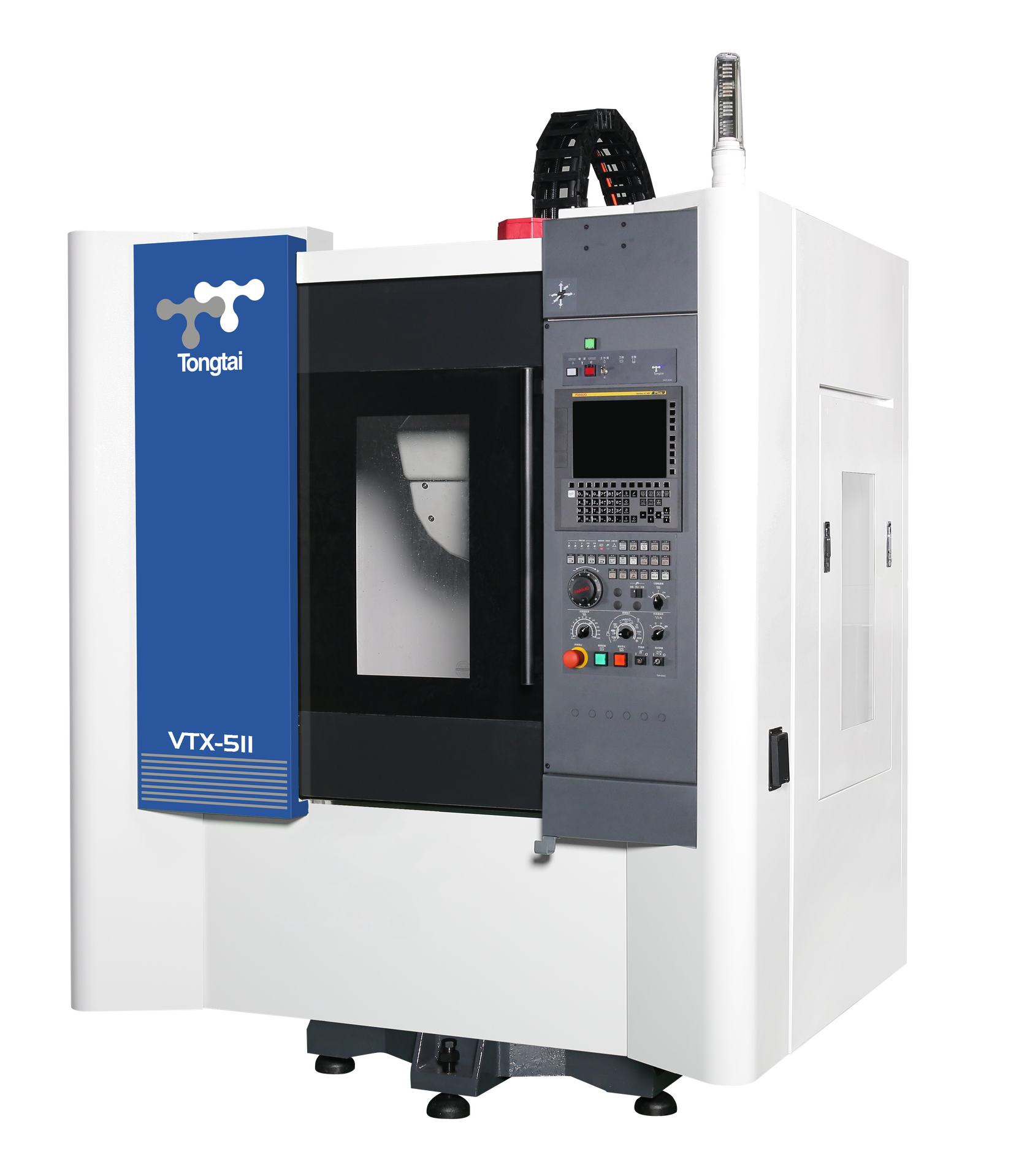

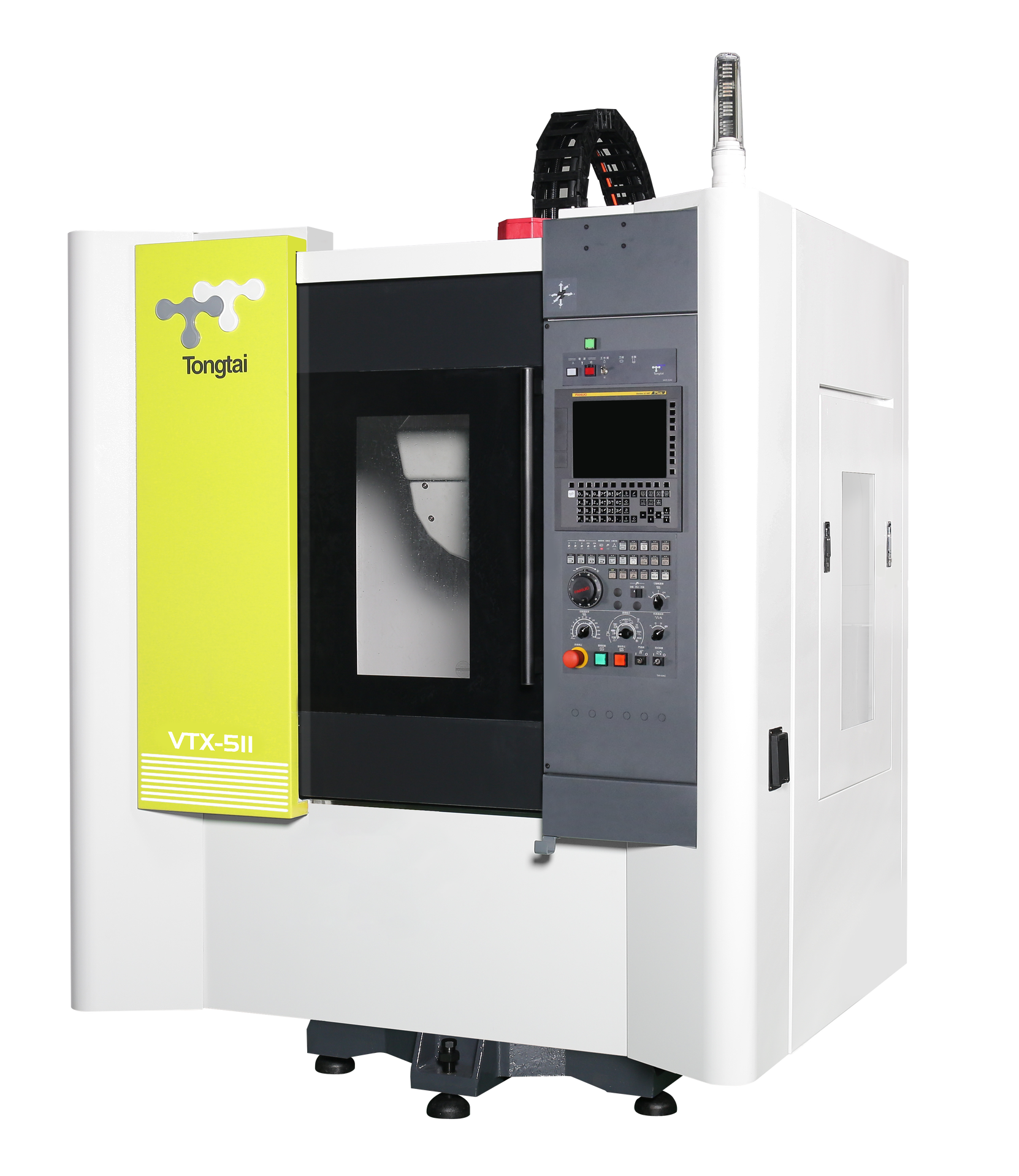

VTX-5[7]II
