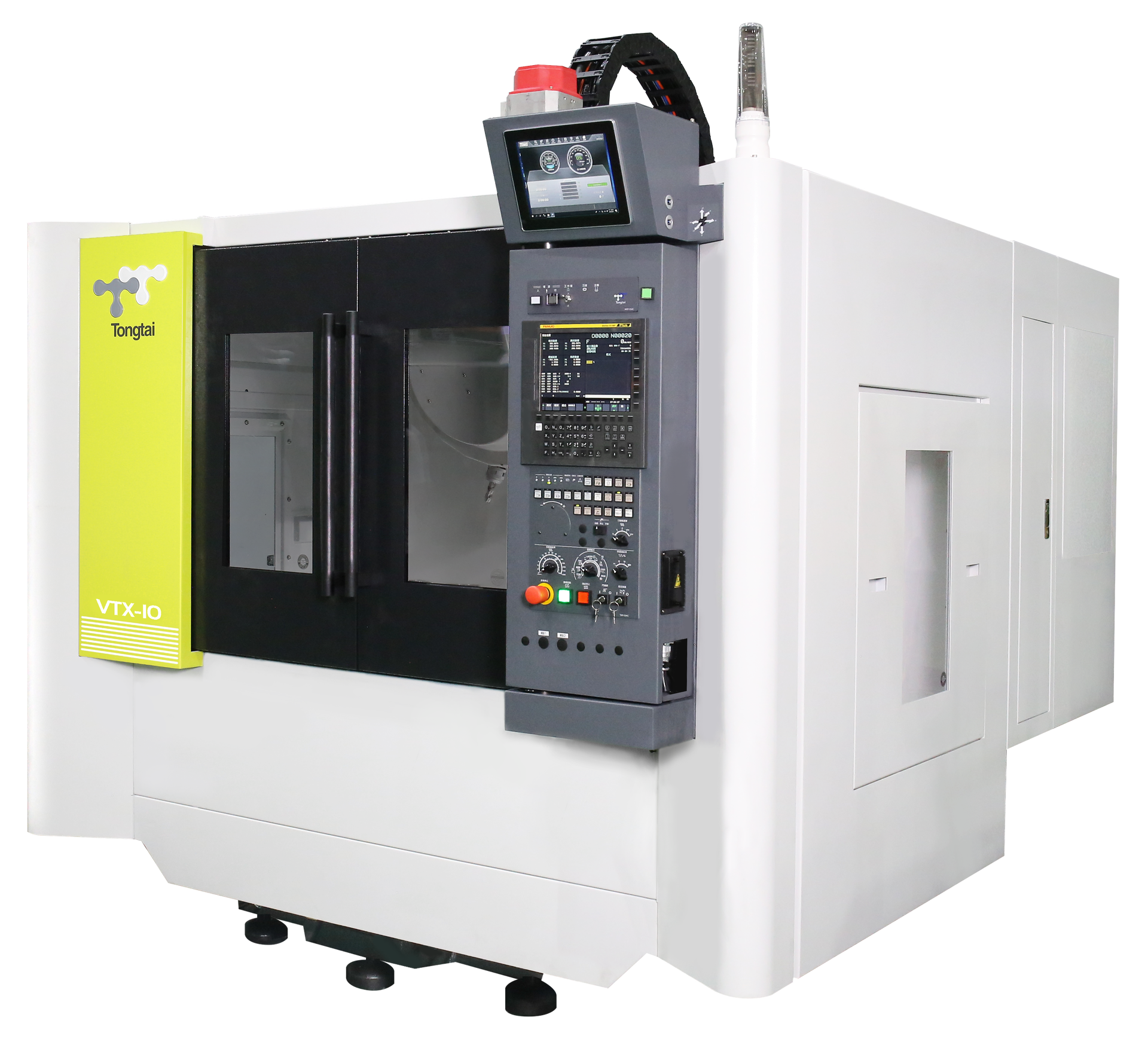

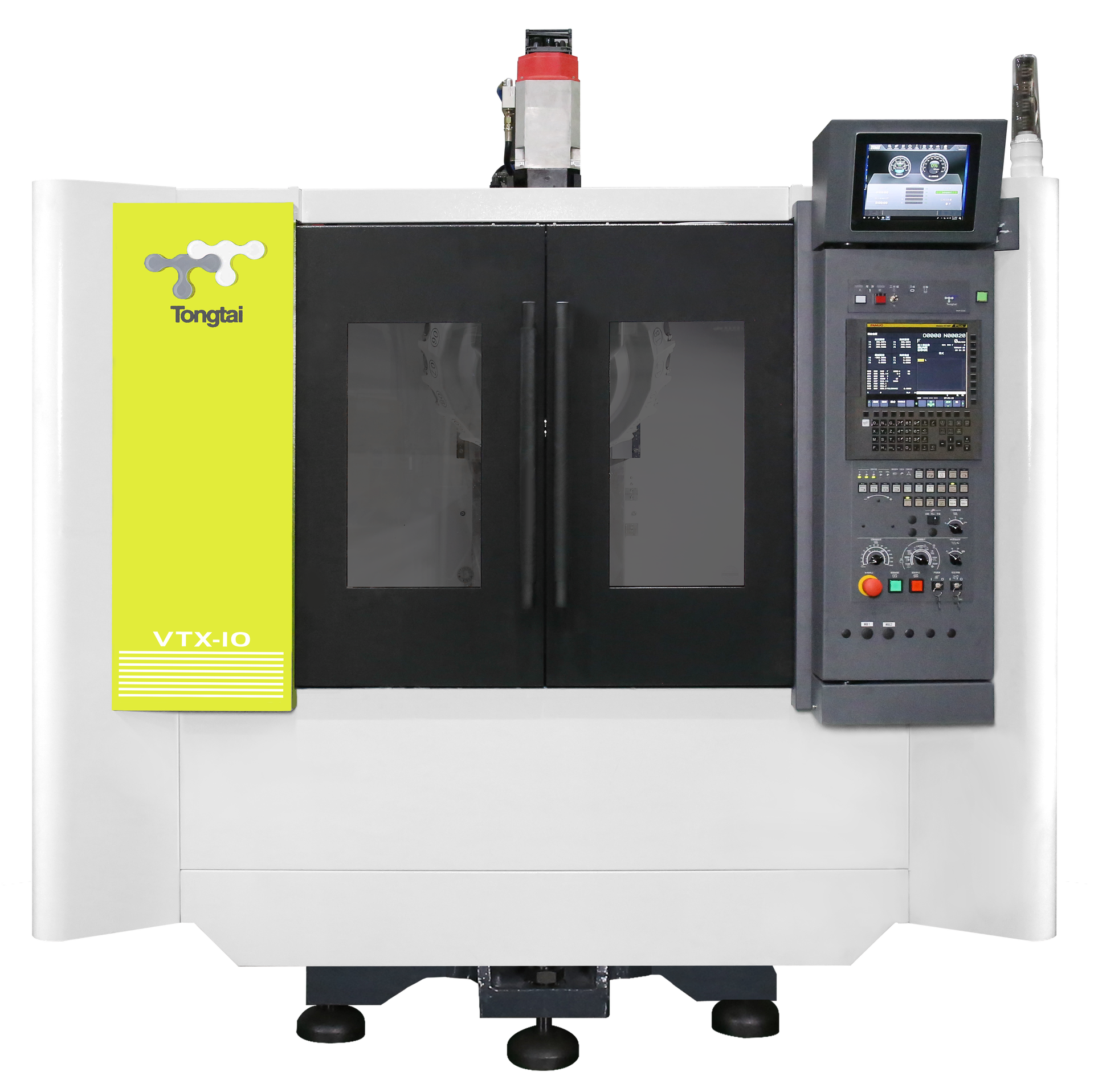

Home > Products > Machine Tool > Tapping Center > Powerful Type > VTX-10Home > Products > Machine Tool > Tapping Center > Powerful Type > VTX-10The X axis travel is 1000mm and suitable for machining big components.
Machine structure is optimized than the past. The rigidity of the X axis direction increases by 25%. Furthermore, the machining precision and quality is much better than the past.
Standardly equipped with BBT-30 dual contact spindle and roller type linear guideway to improve the machining capacity.
Ensures the dynamic stability under the rapid traverse 56m/min with max. 1G acceleration.
Standardly equipped with a servo-driven tool magazine with 21 tools. With the clamping error inspection function, it prevents the incorrect tool placement.
Standardly equipped with FANUC 0i-MF Plus controller.
| Item | VTX-10 |
| Table size (L×W) | 1100x510 mm |
| Max. loading capacity | 500 kg |
| X/Y/Z axis travel | 1000/500/300 mm |
| X/Y/Z axis rapid traverse | 50/50/56 m/min |
| Spindle taper | 7/24 Taper No.30 |
| Spindle speed | 12,000 rpm |
| Spindle motor | High torque type 13/3.7 (7.5/5.5) kW ; High efficiency type 26/9 (34/9)kW |
| Tool Capacity | 21 pc |
