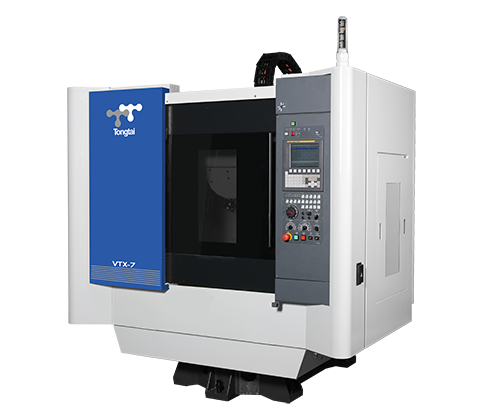

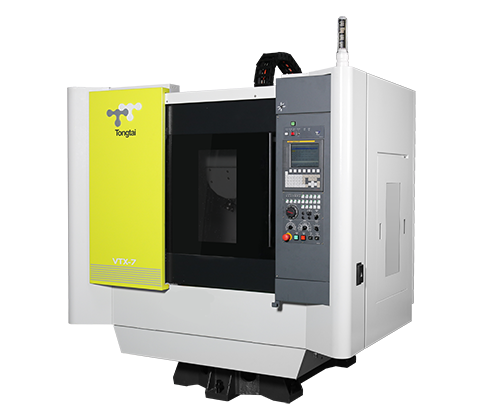

VTX-7[A]

Tapping Center

VTX-7[A]

High speed tool changer, only 1.2 seconds for T-T

High rigidity roller type linear guide way

Direct drive spindle design, high acceleration/deceleration reactivity, rigid tapping of up to 6,000rpm

Spindle shaft’s radius up to 50mm, enhancing cutting rigidity

Maximum torque for spindle motor of up to 82 N·m




Download

Specification

Specification VTX-7[A]
Table size(LxW) 850x400 mm
Max. loading capacity 300 kg
X/Y/Z axis travel 710/400/300[350] mm
X/Y/Z axis rapid traverse 60/60/60 m/min
Spindle taper 7/24 Taper No.30
Spindle speed 12,000 rpm
Spindle motor 3.7/13 kW
Tool capacity 16 (21) [20] pc
