75 degree slant bed design not only benefits keeping the advantages of accessibility and excellent chip disposal, but also lowers the machine’s gravity center for enhancing the entire structure rigidity.
The TMS series is able to be applied for multi-process machining, Integrating swing B-axis and 5-axis simultaneous motion controller is able to be applied for complex curve surface contouring. The parts are possible to be finished just in one machine setup.
Due to the chain type magazine design, it allows workpiece changing and tool changing to process simultaneously for shortening the machining time.
Item | TMS-2500[S] |
Chuck size | 10" inch |
Bar feeding capacity of spindle | Ø72 mm |
X axis travel | 725(-125~600) mm |
Y axis travel | 250(±125) mm |
Z axis travel | 1000 mm |
W axis travel | 1000 mm |
X/Y/Z/W axis rapid traverse | 40/40/40/30 m/min |
Spindle nose | A2-8 |
Spindle speed | 3,500 rpm |
Sub-spindle chuck size | [8"] |
Sub-spindle nose | [A2-6] |
Sub-spindle speed | [5000] rpm |
Machining-spindle speed | 12,000 rpm |
Machining-spindle tool shank | HSK-T63 |
Machining-spindle tool magazine capacity | 40 (opt. 80) |

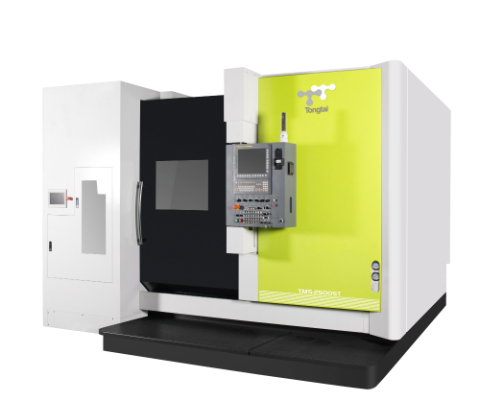

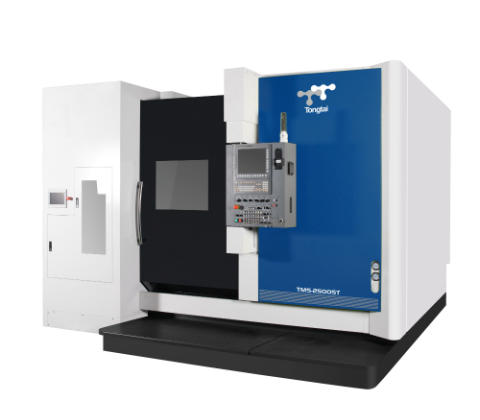

TMS-2500[S]
