Applies single power turret for turning and milling process
90 degree lathe structure allowing for good chip removal and controllability
Low machine gravity center, allowing for overall structure to have good rigidity
X/Y/Z-axis are orthogonal to each other, allowing for high straightness and positioning accuracy

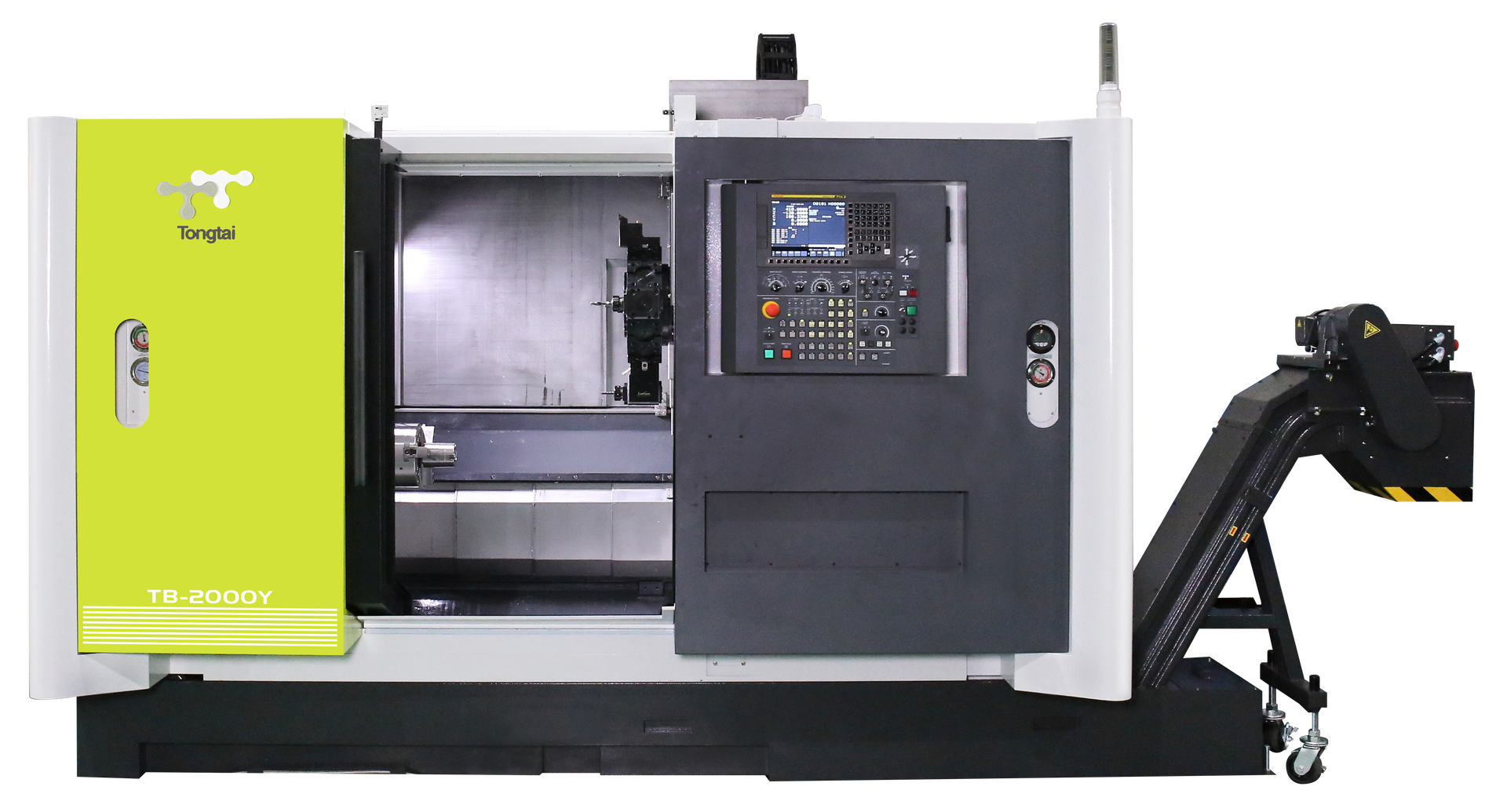

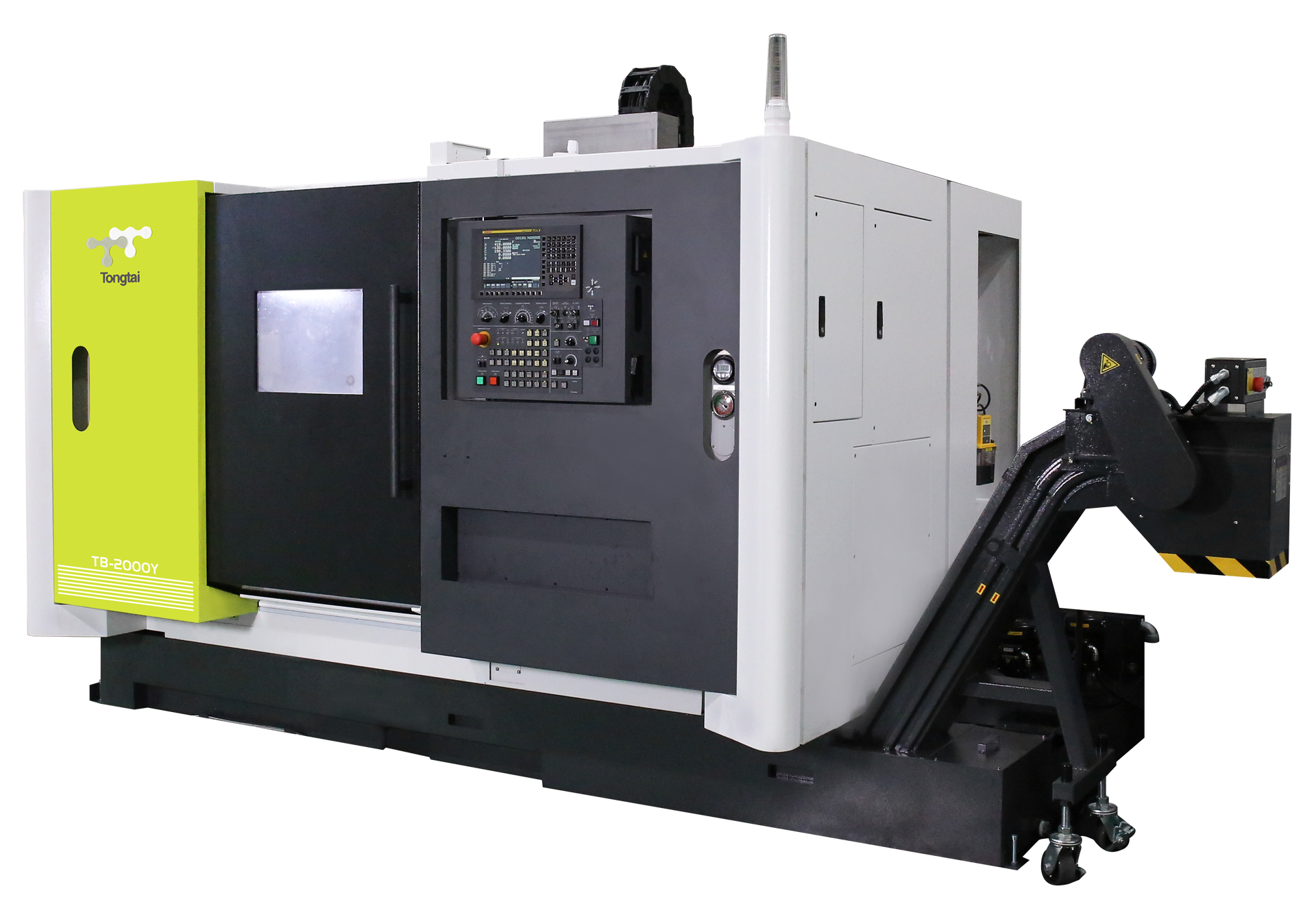

Item | TB-2000Y[BC] |
O.D. of Chuck | 8 inch |
Bar capacity | Ø51 mm |
X/Y/Z/W axis travel | 230/±51/700/-[700] mm |
X/Y/Z/W axis rapid traverse | 30/15/36/-[36] m/min |
Spindle nose | A2-6 |
Spindle speed | 4,500(3,000) rpm |
Spindle motor | 15/11 kW |
O.D. of Sub-spindle chuck | [6"] (8") inch |
Sub-Spindle speed | [5,000] rpm |
Sub-spindle motor | [7.5/5.5] kW |
Tool Capacity | BMT-65: 12 pc BMT-55: 16 pc |
