Uses stable three-point support design for machine bed
NC rotary table uses high rigidity full circumference hydraulic braking system
Optional choice for automatic pallet changer system to increase production efficiency
High precision, rigidity and power output performance
Especially suitable for the automobile industry

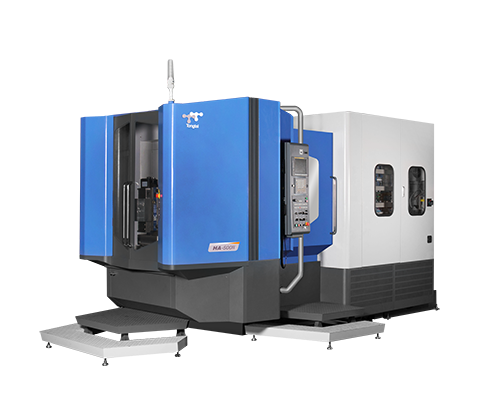

Specification | HA-500II |
Table size(LxW) | 500x500 mm |
Max. loading capacity | 500x2 kg |
X/Y/Z axis travel | 710/680/680 mm |
X/Y/Z axis rapid traverse | 60/60/60 m/min |
Spindle taper | 7/24 Taper No.40 |
Spindle speed | 12000 (15000) rpm |
Spindle motor | 25/22 (37/26/18.5) kW |
Tool capacity | 60 (90) (120) pc |
