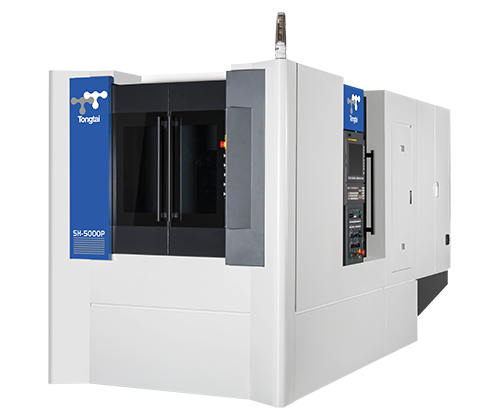

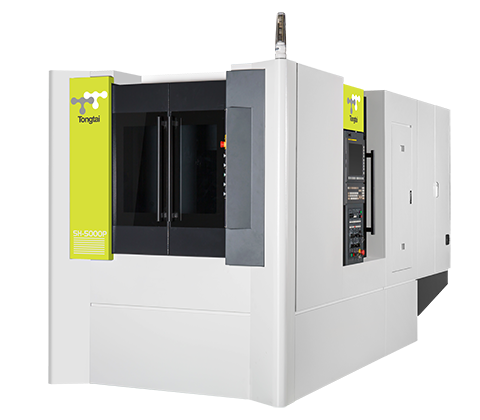

Horizontal Machining Center


High rigidity structure, machine bed supplies a steady three-point support design

Minimized machine size design for convenient production line planning

Optional choice for automatic pallet changer system to increase production efficiency

Standard equipped 15,000rpm built-in spindle, maximum power of up to 37 kW, maximum torque of up to 250 N m

SH series are very suitable for high speed cutting of aluminum alloys



Specification SH-5000(P)
Table size(LxW) 500x500 mm
Max. loading capacity 500 kg
X/Y/Z axis travel 730/730/830 mm
X/Y/Z axis rapid traverse 60/60/60 m/min
Spindle taper 7/24 Taper No.40
Spindle speed 15000 rpm
Spindle motor 37/26/18.5 kW
Tool capacity 40 (60) pc
