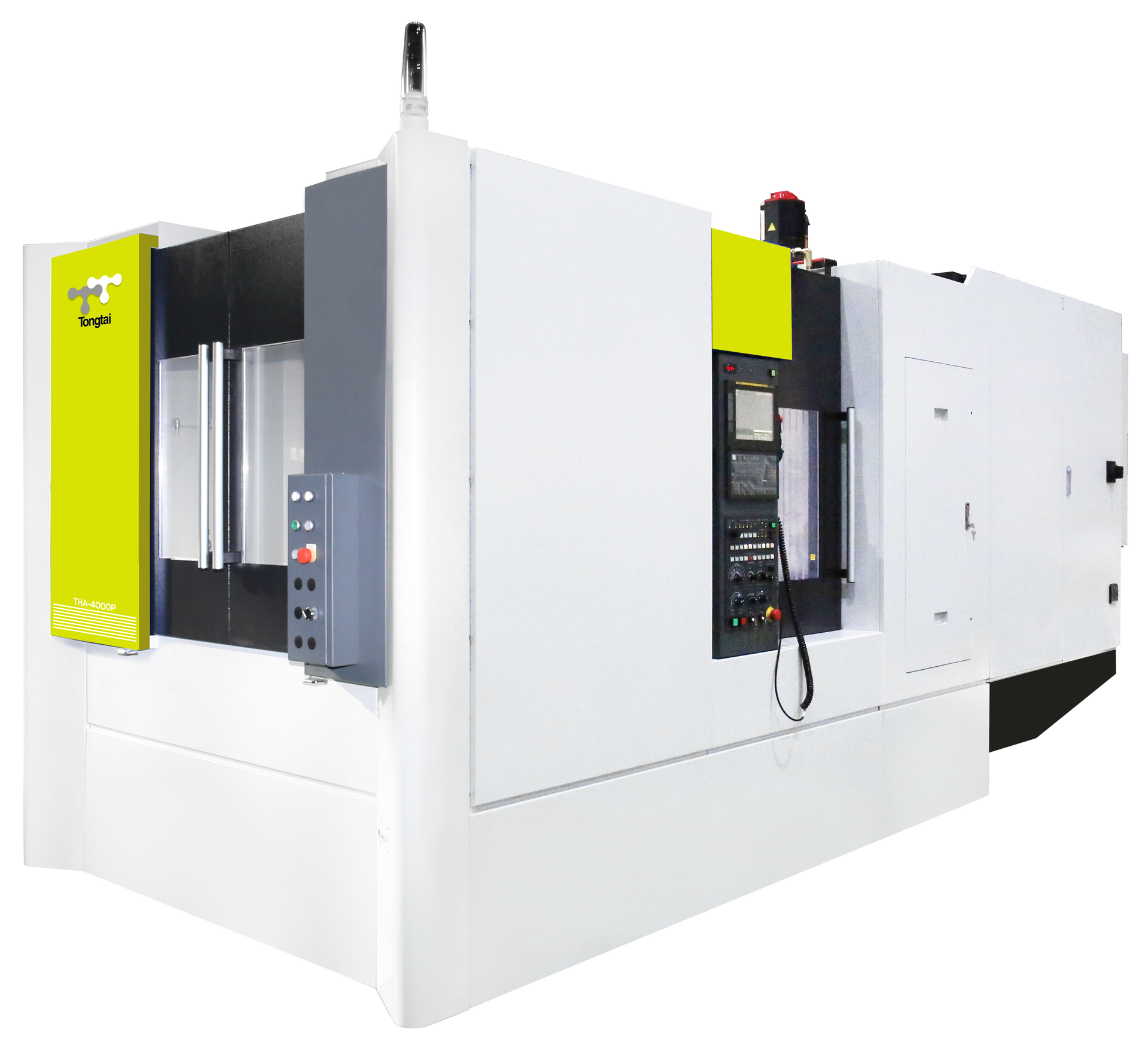

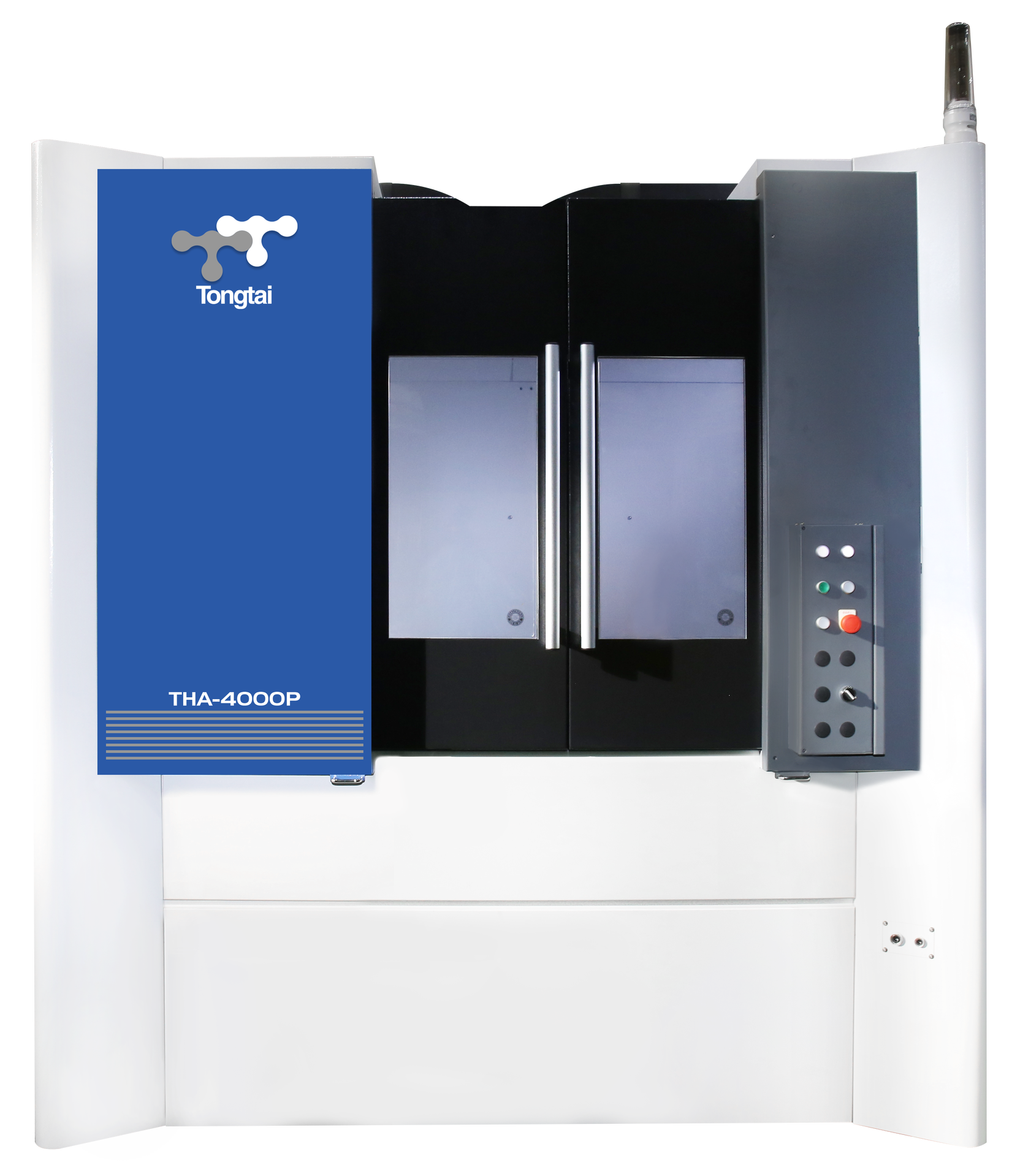

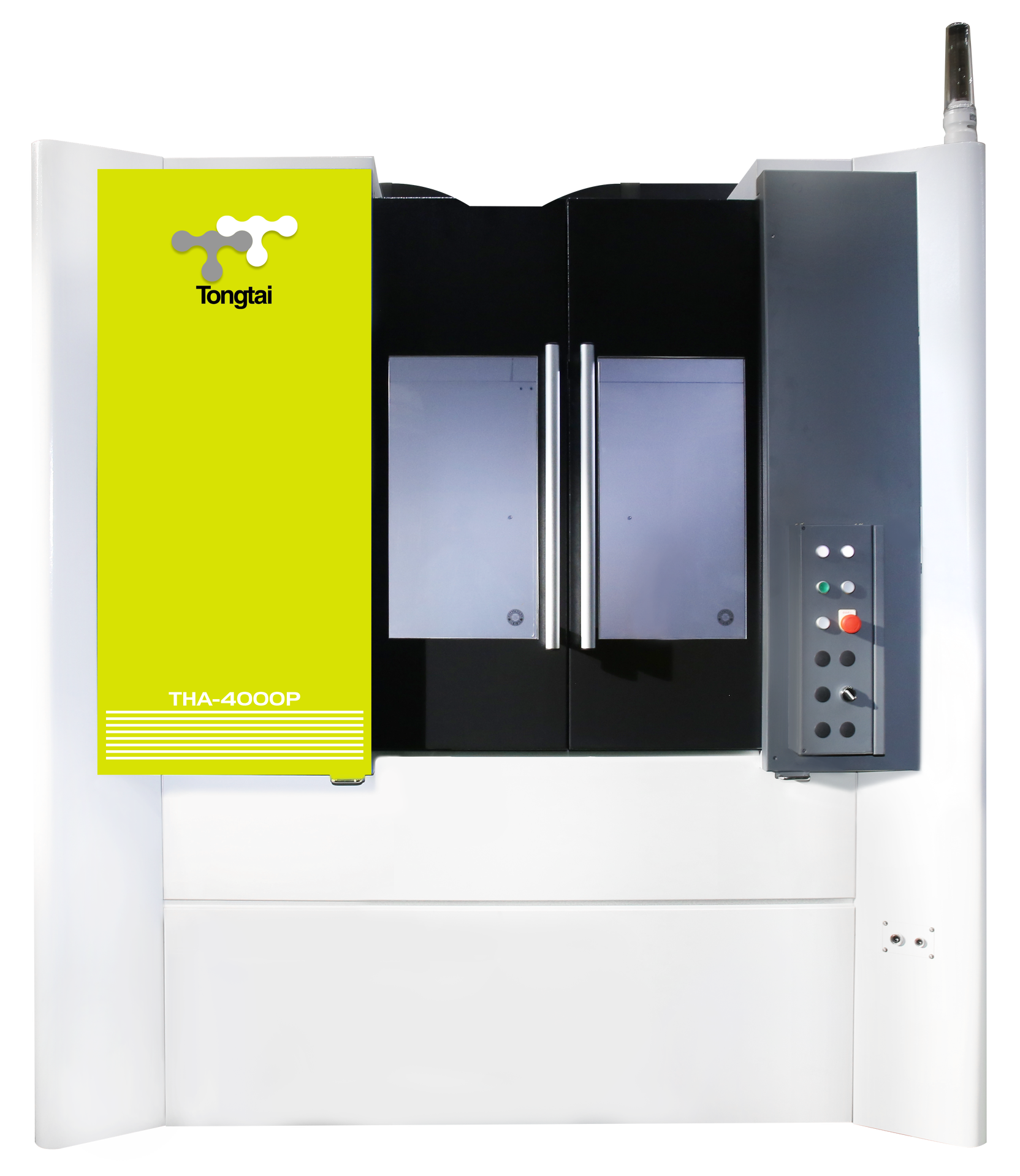

THA-4000P

Horizontal Machining Center

THA-4000P

A high-speed, high rigidity horizontal machining center which provides high accuracy and high torque to improve your productivity. It could go with thermal compensation system to enhance the machining accuracy.

Compared with HA model, it is 12% smaller footprint which is allowed to ship with standard container (40HQ).

On the other hand, it also has flexible expansion for accessories that is APC (Auto Pallet Change), PPL system or FMS (Flexible Manufacturing System) to choose to meet clients requires.




Download

Specification

Item THA-4000P
Table size (LxW) 400x400 (500x500) mm
Max. loading capacity 400 kg
X/Y/Z axis travel 610/610/660 mm
X/Y/Z axis rapid traverse 60/60/60 m/min
Spindle taper 7/24 Taper No.40
Spindle speed 15000 (15000/20000) rpm
Spindle motor 37/15 [40/30] kW
Tool Capacity 40 (60,90,120,240) pc
