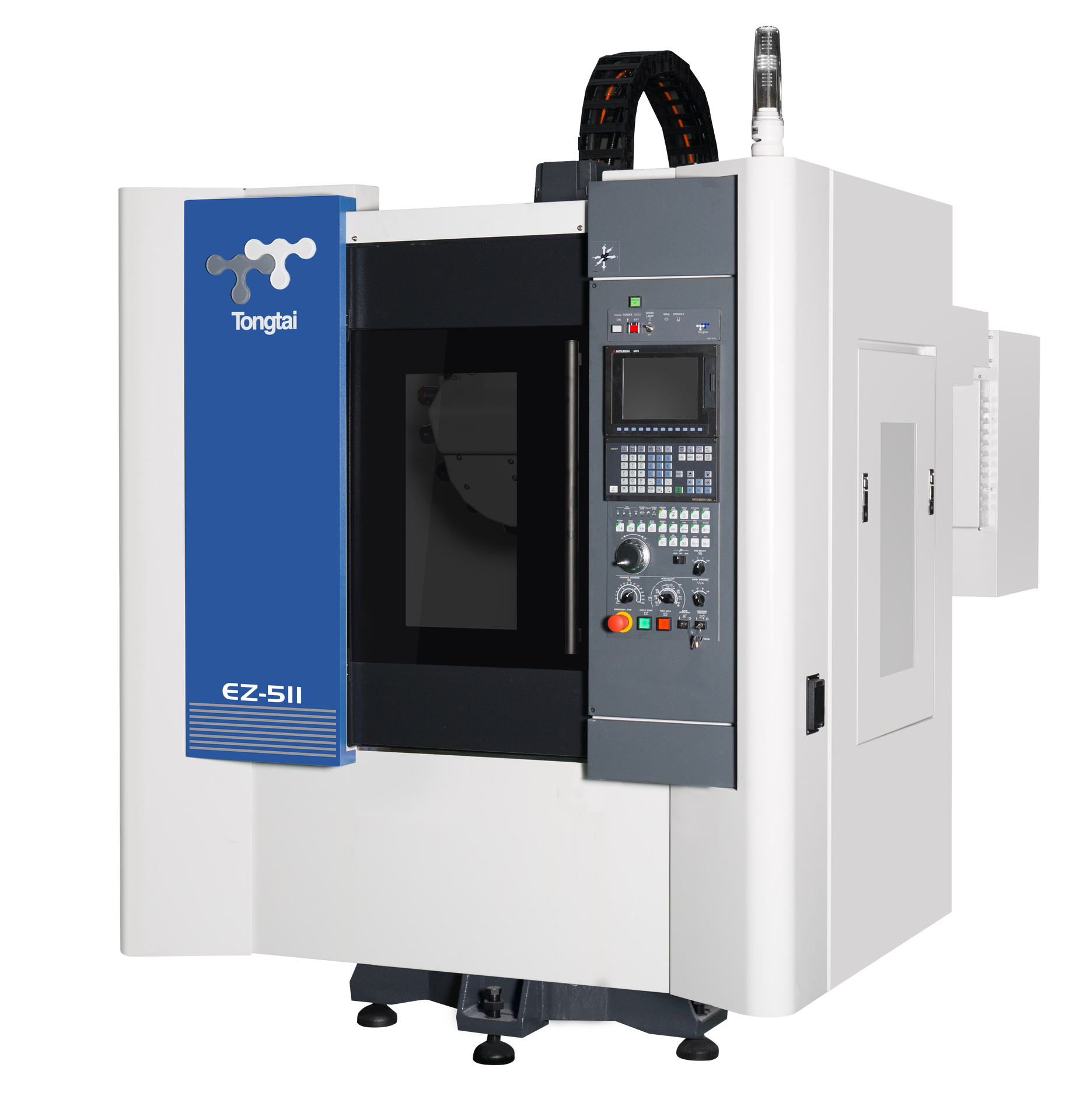

EZ-5[7]II

Tapping Center

EZ-5[7]II

High speed tool changer, only 1.2 seconds for T-T time

Tool magazine is driven by servo motor, allowing for rapid tool choosing

Adopt direct drive motor on spindle, allowing for high acceleration/deceleration reactivity, rigid tapping of up to 6000 rpm

3-axis rapid traverse rate of 60 m/min, acceleration of up to 1.2G

Spindle speed reaches a maximum of 24,000 rpm




Download

Specification

Specification EZ-5[7]II
Table size(LxW) 600 [850]x400 mm
Max. loading capacity 300 kg
X/Y/Z axis travel 510 [710]/400/300 mm
X/Y/Z axis rapid traverse 60/60/60 m/min
Spindle taper 7/24 Taper No.30
Spindle speed 12,000 (24,000) rpm
Spindle motor 7.5/3.7 (3.7/1.5) kW
Tool capacity 21 pc
