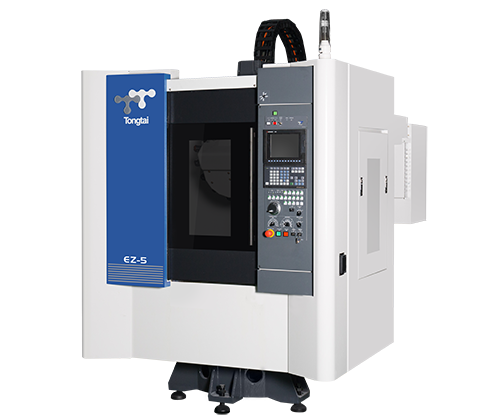

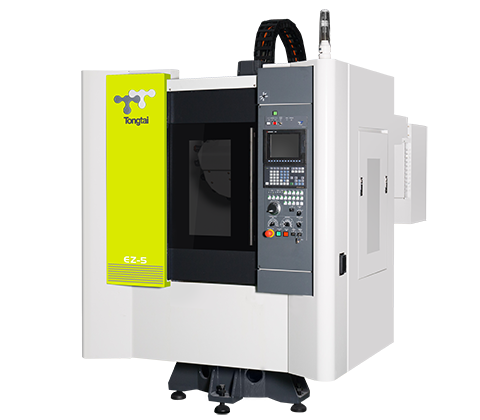

Home > Products > Machine Tool > Tapping Center > Precision Machining > EZ-5[A]Home > Products > Machine Tool > Tapping Center > Precision Machining > EZ-5[A]High speed tool changer, only 1.2 seconds for T-T time
Tool magazine is driven by servo motor, allowing for rapid tool choosing
Adopt direct drive motor on spindle, allowing for high acceleration/deceleration reactivity, rigid tapping of up to 6000 rpm
3-axis rapid traverse rate of 60 m/min, acceleration of up to 1.2G
Spindle speed reaches a maximum of 24,000 rpm
| Specification | EZ-5[A] |
| Table size(LxW) | 600x400 mm |
| Max. loading capacity | 250 kg |
| X/Y/Z axis travel | 510/400/300[350] mm |
| X/Y/Z axis rapid traverse | 60/60/60 m/min |
| Spindle taper | 7/24 Taper No.30 |
| Spindle speed | 12,000 (24,000) (20,000) rpm |
| Spindle motor | 5.5/3.7 (3.7/2.2) (9/3.7) kW |
| Tool capacity | 16(21) [20] pc |
