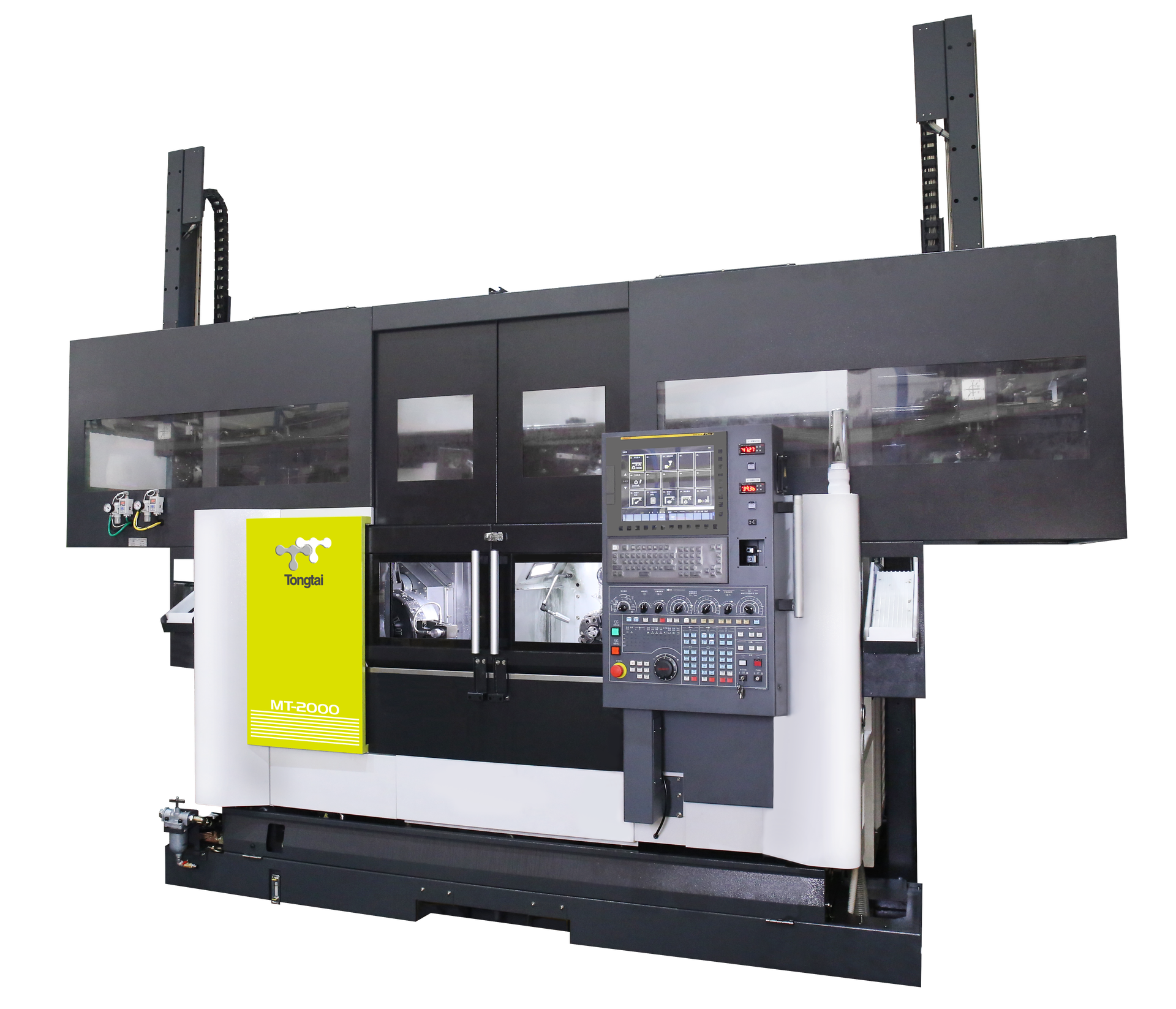

‧Dual-spindle, dual-turret CNC lathe with an integrated loading/unloading robotic arm.
‧Designed for processes that require automatic single-piece feeding.
‧The MT series features a smaller footprint, shorter automation pathways, and higher productivity.
‧Short travel distances, minimal idle time, and minimal thermal displacement.
‧The TiOperator enables the MT series to achieve efficient 24-hour operation effortlessly.
Item |
Unit |
MT-1500 |
Max. swing diameter |
mm |
Ø210 |
Chuck O.D. |
inch |
6/8 |
X/Z axis travel |
mm |
155/155 |
X/Z axis rapid traverse |
m/min |
30/30 |
Spindle nose |
|
A2-5 |
Spindle speed |
rpm |
4,500 (6,000) |
Spindle motor |
kW |
11/7.5/5.5 |
Tool capacity |
pc |
12 |
MT-1500
