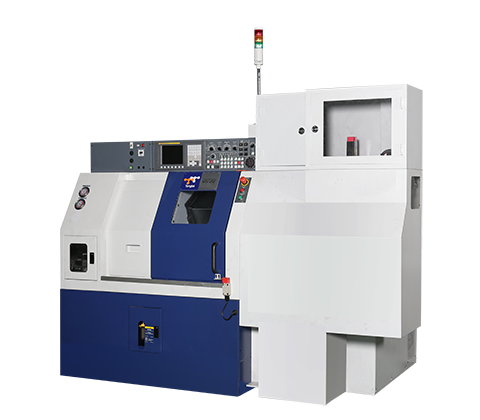

HS-22[M]

Horizontal CNC Lathe

HS-22[M]

Specifically designed for medium and small sized workpieces

High rigidity complete box way slide structure design

Power turret and C-axis design satisfies the machining demand of hybrid milling and turning

Patented automatic material feed and storage device, the time for material feeing and return can completed by a minimum of 4.8 seconds




Download

Specification

Specification HS-22[M]
Chuck O.D. 6" (8") inch
Bar capacity Ø26 (Ø44) (Ø51) mm
X/Z axis travel 155/220 mm
X/Z axis rapid traverse 20/20 (linear guide 24/30) m/min
Spindle nose A2-5 (A2-6)
Spindle speed 6,000 (4,800) (4,500) rpm
Spindle motor 15/11/7.5 [18.5/15/11] kW
Tool capacity 12 (8) [VDI-40:12] pc
