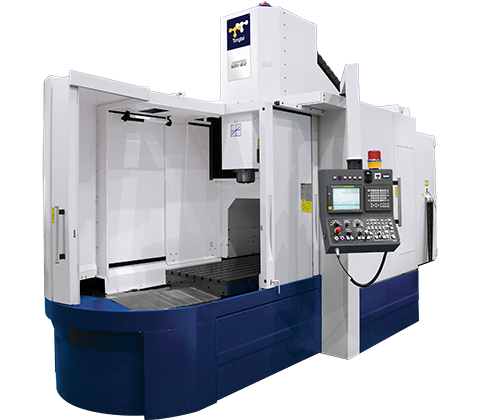

Gantry type high rigidity structural design, enabling high speed and high precision processing
Adopt oil air lubrication spindle, provides low heat and reach long lifetime features
Speed of spindle up to a maximum of 20,000 rpm
Excellent surface processing accuracy
Suitable for precision machining industries like tooling industry
Specification | MDV-812 |
Table size(LxW) | 1320x800 mm |
Max. loading capacity | 2000 kg |
X/Y/Z axis travel | 1200/800/500 mm |
X/Y/Z axis rapid traverse | 30/30/30 m/min |
Spindle taper | 7/24 Taper No.40 |
Spindle speed | 12,000 (15,000) (20,000) rpm |
Spindle motor | 11/7.5 (15/11/7.5) (40/30) kW |
Tool capacity | 16 (40) pc |
