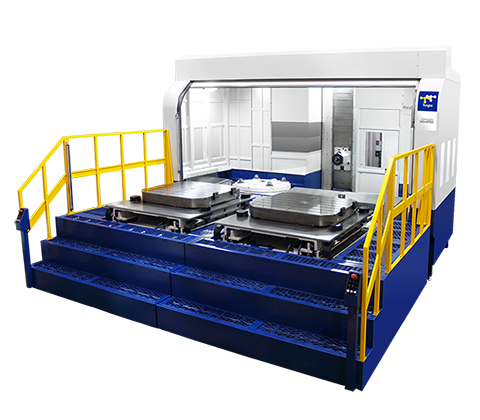

HG-1250

Horizontal Machining Center

HG-1250

Adopts high class cast iron for the best machine structure design

Complete box way slide made by high precision processing, high frequency induction hardening and precision grinding

Powerful servo motor, directly driving the precise ball screw, avoiding any transmission error

3-axis rapid traverse rate of up to 20 m/min

Spindle applies a two speed gear box with a maximum torque of up to 1,319 N m




Download

Specification

Specification HG-1250
Table size(LxW) 1250x1250 mm
Max. loading capacity 4000x2 kg
X/Y/Z axis travel 2000/1400/1250 mm
X/Y/Z axis rapid traverse 20/20/20 m/min
Spindle taper 7/24 Taper No.50
Spindle speed 6,000 (8,000) rpm
Spindle motor 22/18.5 (26/22) kW
Tool capacity 60 (90) (120) pc
