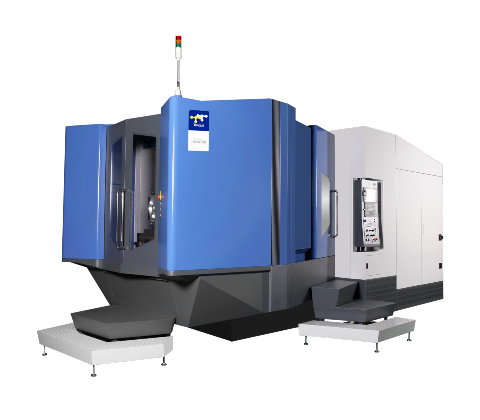

HB-800II

Horizontal Machining Center

HB-800II

Standard equipped 10,000rpm built-in spindle, able to perform surged torque which can reach 420 N m while running to 500rpm

B-axis rotary table adopted with hydraulic jig fixture, ensuring powerful clamping for stable cutting

Rotary table adopted with full circle brake, able to withstand heavy cutting with its large contact surface

Adopt high efficiency automated pallet changer system

Flexible manufacturing system available for option

Suitable for heavy cutting machining for metallic materials




Download

Specification

Specification HB-800II
Table size(LxW) 800x800 mm
Table capacity 1,800x2 kg
X/Y/Z axis travel 1,400/1,200/1,300 mm
X/Y/Z axis rapid traverse 50 m/min
Spindle taper 7/24 Taper No.50
Spindle speed 10,000 (8,000) (6,000) rpm
Spindle motor 30/25 (26/22) (22/18.5) kW
Tool capacity 60 (90) (120) pc
