Home > Products > Machine Tool > 5-axis Machining Center > Gantry type > GT-800EHome > Products > Machine Tool > 5-axis Machining Center > Gantry type > GT-800EGantry type structure, moving axes driven at the center of gravity, dynamic capabilities greatly improved
5-axis simultaneous machining can complete complex processes in one-sitting
High rigidity structure with closed design
Gantry type movement, 3-axis feed rate will not affected by workpiece’s weight
Adopts oil air lubrication spindle, provides low heat and reach long lifetime feature
5-axis trunnion table is driven by built-in DD motor, allowing for high precision and high rotation speed
| Specification | GT-800E |
| Table size(LxW) | Ø800 mm |
| Max. loading capacity | 800 kg |
| X/Y/Z axis travel | 800/820/560 mm |
| A/C axis travel | +30°~-120°/±360° deg |
| X/Y/Z axis rapid traverse | 48/48/48 m/min |
| A/C axis rapid traverse | 50/100 rpm |
| Spindle taper | 7/24 Taper No.40 |
| Spindle speed | 15000 (20000) rpm |
| Spindle motor | 40/40 (18.5/11/7.5) (40/30) kW |
| Tool capacity | 32 (40) (64) pc |

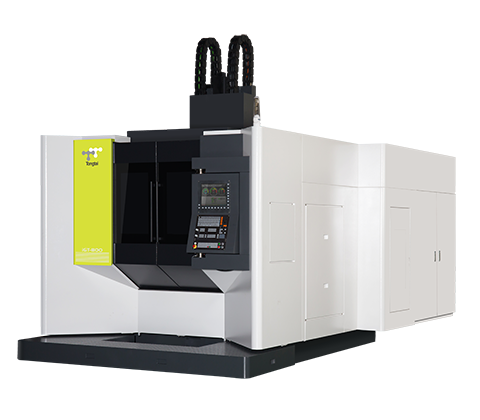

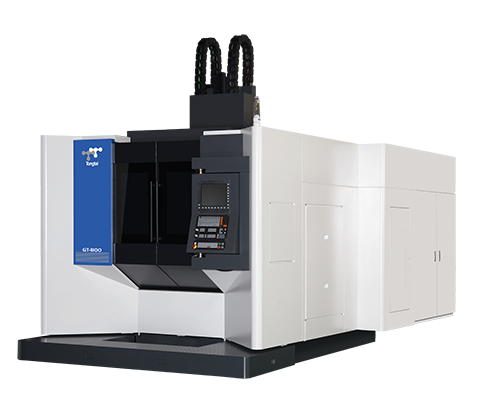

GT-800E
