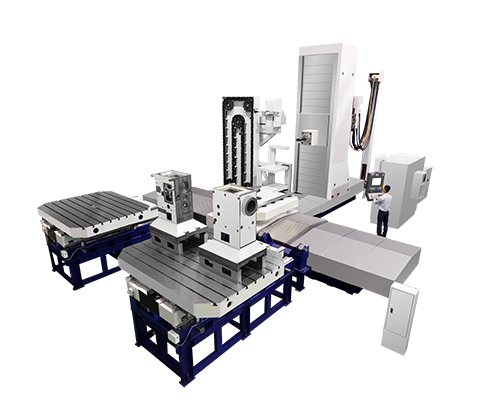

Home > Products > Machine Tool > Boring & Milling Machine > Table Type > TBT-160Home > Products > Machine Tool > Boring & Milling Machine > Table Type > TBT-160Adopt symmetric double wall design column
Y axis dual guide rail applies a 4 face contact design
Movable face applies a low friction air-floated design, greatly enhancing positioning and repeated precision
TBT series is suitable for energy and shipping industries
| Specification | TBT-160 |
| Quill diameter | Ø160 mm |
| Table size (L×W) | 2,000×2,000 (2,000×2,500) (2,500×2,500) mm |
| Max. loading capacity | 15,000 (20,000) (25,000) kg |
| X axis travel | 3,000 (4,000) (5,000) mm |
| Y axis travel | 2,500 (3,000) mm |
| Z axis travel | 2,200 (2,700) mm |
| W axis travel | 800 mm |
| X/Y/Z/W axis rapid traverse | 25/25/25/25 m/min |
| Spindle taper | 7/24 Taper No.50 |
| Spindle speed | 3,500 rpm |
| Spindle motor | 88/62.5/52 kW |
| Tool capacity | 60 (90) (120) pc |
