Adopt symmetric double wall design column
Y axis dual guide rail applies a 4 face contact design
Movable face applies a low friction air-floated design, greatly enhancing positioning and repeated precision

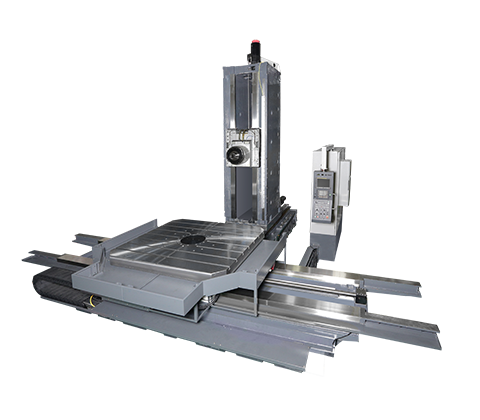

TBT series is suitable for energy and shipping industries
Specification | TBT-130H |
Quill diameter | Ø130 mm |
Table size (L×W) | 1,600×1,800 (1,400X1,600) mm |
Max. loading capacity | 12,000 (8,500) kg |
X axis travel | 3,000 mm |
Y axis travel | 1,800 (2,300) mm |
Z axis travel | 1,600 (2,000) mm |
W axis travel | 700 mm |
X/Y/Z/W axis rapid traverse | 12/12/12/12 m/min |
Spindle taper | 7/24 Taper No.50 |
Spindle speed | 2,500 rpm |
Spindle motor | 35/26/22 (37/30) kW |
Tool capacity | 60 (90) (120) pc |
