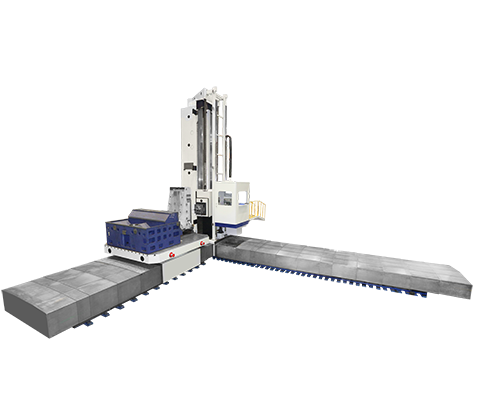

Column applies a double wall high rigidity design
B-axis is supported with a hydrostatic support structure which able to carry a maximum of 65 tons
Integrated cast iron spindle head stock providing the ram and gearbox with powerful supports
Spindle is supported with high precision angular contact ball bearing which complemented with oil-air lubrication
TBF series is suitable for energy and shipping industries
Specification | TBF-160 |
Quill diameter | Ø160 mm |
Table size (L×W) | 3,000 x 12,000 mm |
Max. loading capacity | 100,000 kg |
X axis travel | 5,000-25,000 mm |
Y axis travel | 3,000 (4,000) (5000) mm |
Z axis travel | 1,200 mm |
W axis travel | 1,000 mm |
X/Y/Z/W axis rapid traverse | 20/20/20/20 m/min |
Spindle taper | 7/24 Taper No.50 |
Spindle speed | 3,500 rpm |
Spindle motor | 60 kW |
Tool capacity | 60 (90) (120) pc |
