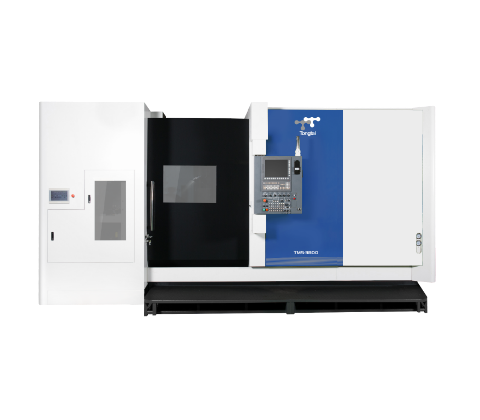

TMS-3800[S]

Multi-tasking Turning Center

TMS-3800[S]

75 degree slant bed design not only benefits keeping the advantages of accessibility and excellent chip disposal, but also lowers the machine’s gravity center for enhancing the entire structure rigidity.

The TMS series is able to be applied for multi-process machining, Integrating swing B-axis and 5-axis simultaneous motion controller is able to be applied for complex curve surface contouring. The parts are possible to be finished just in one machine setup.

Due to the chain type magazine design, it allows workpiece changing and tool changing to process simultaneously for shortening the machining time.




Download

Specification

Item TMS-3800[S]
Chuck size 15" inch
Bar feeding capacity of spindle Ø95 mm
X axis travel 725(-150~575) mm
Y axis travel 300(±150) mm
Z axis travel 1500 mm
W axis travel 1500 mm
X/Y/Z/W axis rapid traverse 40/40/40/30 m/min
Spindle nose A2-8
Spindle speed 2,500 rpm
Sub-spindle chuck size [12"]
Sub-spindle nose [A2-8]
Sub-spindle speed [3,500] rpm
Machining-spindle speed 12,000 rpm
Machining-spindle tool shank HSK-T63
Machining-spindle tool magazine capacity 40 (opt. 80)
