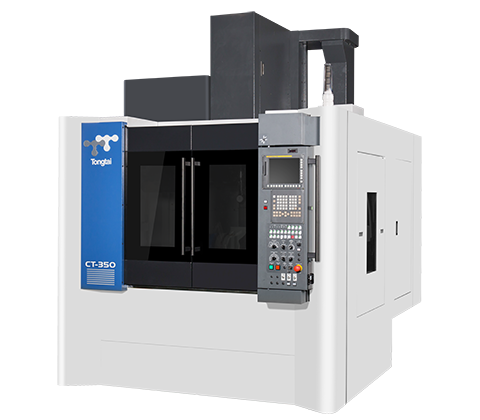

CT-350

5-axis Machining Center

CT-350

Workpiece’s size of up to maximum Ø380 mm/H220 mm

Equipped with zero-backlash roller gear cam type trunnion table, allowing for high precision and strong rigidity

5-axis machining can complete complex processes in one-sitting

Excellent cost performance value




Download

Specification

Capacity CT-350
Table size(LxW) Ø350 mm
Max. loading capacity 200 kg
X/Y/Z axis travel 400/510/510 mm
A/C axis travel +30°~-120°/±360° deg
X/Y/Z axis rapid traverse 36/36/30 m/min
A/C axis rapid traverse 33.3/40 rpm
Spindle taper 7/24 Taper No.40
Spindle speed 15000 (20000) rpm
Spindle motor 18.5/11/7.5 (40/30) kW
Tool capacity 24 (30) (40) pc
