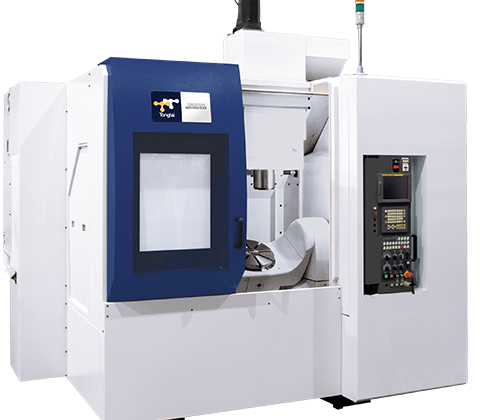

MDV-551-5AXII

5-axis Machining Center

MDV-551-5AXII

Gantry type high rigidity structural design, enabling high speed and high precision processing

Adopt oil air lubrication spindle, provides low heat and reach long lifetime features

Speed of spindle up to a maximum of 20,000 rpm

Excellent surface processing accuracy

Suitable for precision machining industries like tooling industry




Download

Specification

Specification MDV-551-5AXII
Table size(LxW) Ø500 mm
Max. loading capacity 400 kg
X/Y/Z axis travel 510/530/450 mm
A/C axis travel +30°~-120°/±360° deg
X/Y/Z axis rapid traverse 48/48/48 m/min
A/C axis rapid traverse 30/50 rpm
Spindle taper 7/24 Taper No.40
Spindle speed 15000 (20000) rpm
Spindle motor 40/40 (40/30) kW
Tool capacity 16 (30) (60) pc
