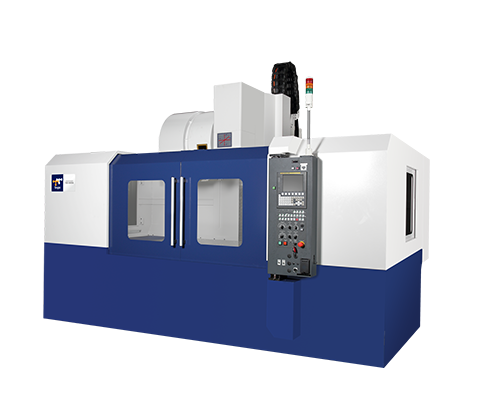

TMV-1500A

Vertical Machining Center

TMV-1500A

Special structural design, has both high rigidity and vibration absorption capabilities

Equipped large size linear guide way and ball screw

Optional BT-50 spindle which can reach excellent heavy cutting capability

Four linear guide ways for Y axis , providing completely support for large workpieces

Door opening range up to 1664mm, convenient for loading & unloading large workpieces




Download

Specification

Specification TMV-1500A
Table size(LxW) 1600x762 mm
Max. loading capacity 1869 kg
X/Y/Z axis travel 1525/762/710 mm
X/Y/Z axis rapid traverse 18/18/18 m/min
Spindle taper 7/24 Taper No.40
Spindle speed 8000 (10000) (12000) (15000) rpm
Spidnle motor 18.5/15/11 (12/9/7.5) (15/11/7.5) (18.5/11/7.5) kW
Tool capacity 24 pc
