High quality direct-drive spindle and high rigidity structure design
BBT-40 spindle, supports dual contact tool holder
Excellent precision and cutting capability
General purpose model, suitable for all types of processing industries
High cost performance value
Specification | VP-10 |
Table size(LxW) | 1070x510 mm |
Max. loading capacity | 500 kg |
X/Y/Z axis travel | 1020/510/600 mm |
X/Y/Z axis rapid traverse | 36/36/36 m/min |
Spindle taper | 7/24 Taper No.40 |
Spindle speed | 10000 (15000) rpm |
Spindle motor | 11/7.5 (15/11/7.5) kW |
Tool capacity | 24 (30) pc |

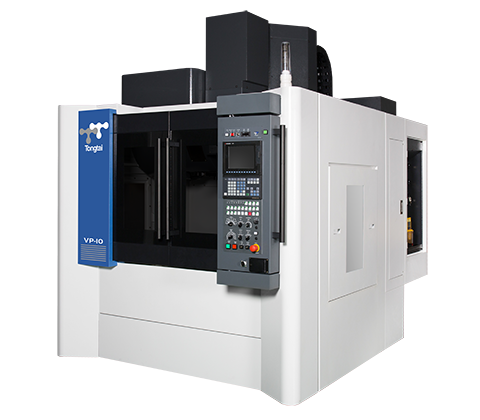

VP-10
