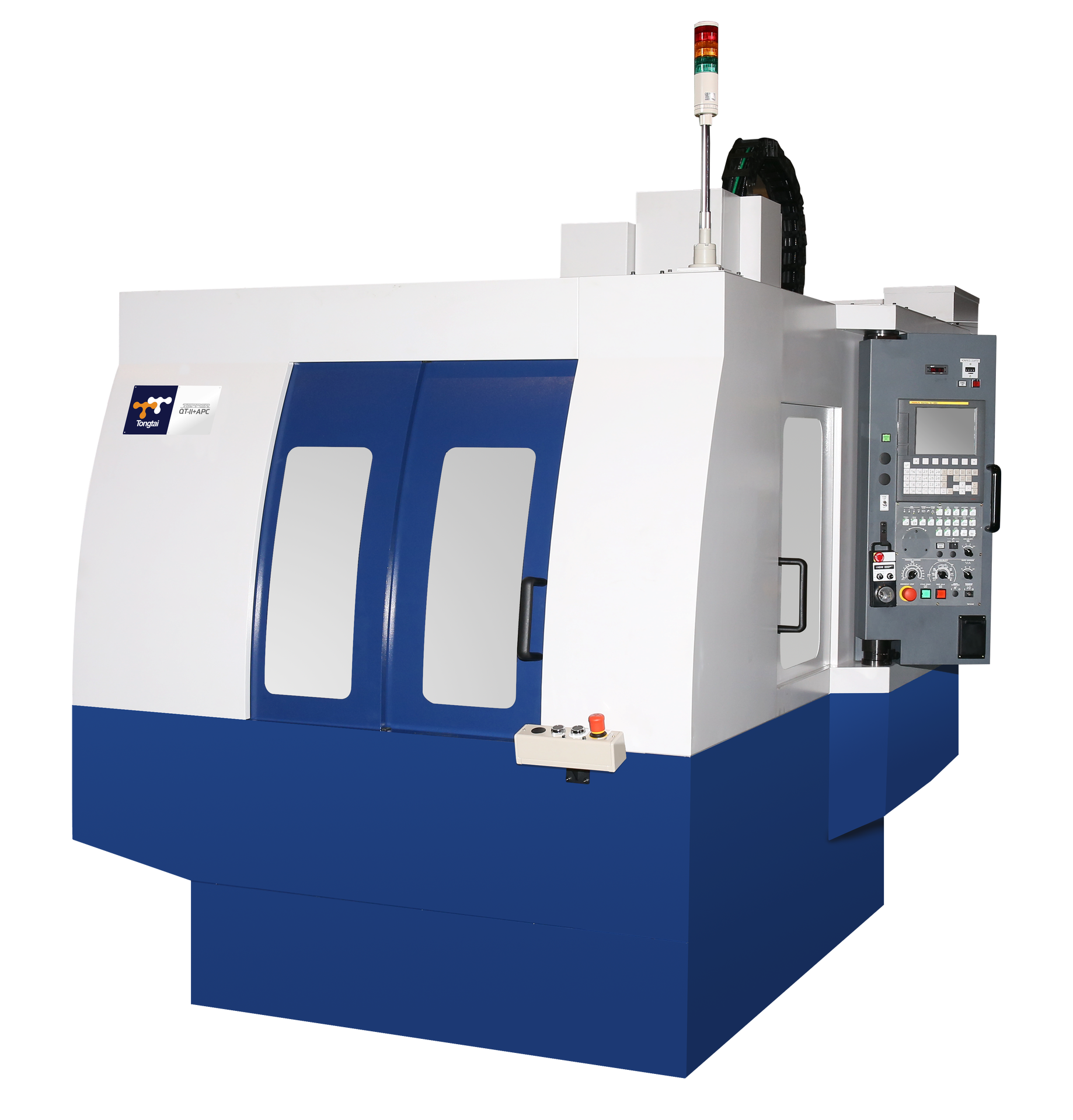

Moving column design
Equipped with an automatic pallet changer system which can increase production efficiency
Arm type tool changer, only 0.9 seconds for T-T time
Adopt BT-30 spindle, rigid tapping of up to a maximum of 6000rpm
Suitable for small parts processing and magnesium alloy machining such as 3C industry
Specification | QT-II+APC |
Table size(LxW) | 600x360 mm |
Max. loading capacity | 100x2 kg |
X/Y/Z axis travel | 510/360/435 mm |
X/Y/Z axis rapid traverse | 40/40/48 m/min |
Spindle taper | 7/24 Taper No.30 |
Spindle speed | 15,000 rpm |
Spindle motor | 5.5/3.7/2.2 kW |
Tool capacity | 20 pc |
