Home > Products > Machine Tool > Horizontal CNC Lathe > 5" > Q5

Q5

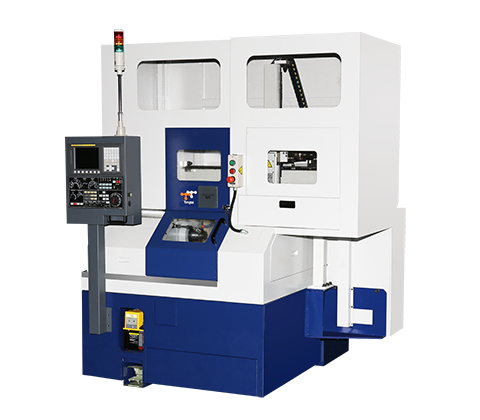

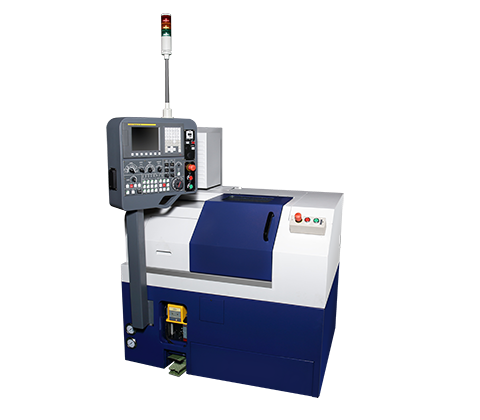

Horizontal CNC Lathe

Q5

Small compact gang type lathe, requiring small floor space

Can be complemented with an automation solution to reduce non-cutting time

Various gang tool pedestal options

Can choose to use mechanical arms and storage mechanisms according to the processed workpiece's shape

Suitable for mass producing component parts

Symmetrical machine structure design to reduce thermal displacement




Download

Specification

Specification Q5
Chuck O.D. 5" (4") inch
Bar capacity Ø26 mm
X/Z axis travel 220/220 mm
X/Z axis rapid traverse 30/30 m/min
Spindle nose A2-4
Spindle speed 6,000 (8,000) rpm
Spindle motor 7.5/5.5/3.7 kW
Tool capacity 2-5 pc
