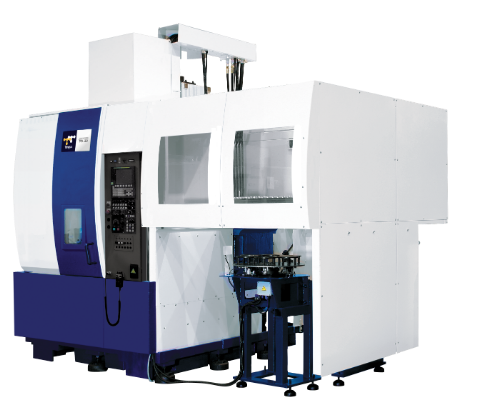

Vertical CNC Lathe


Symmetric spindle headstock structure to reduce thermal displacement

Reverse lathe design with an automatic feeding mechanism, can use lathe chuck to load and unload workpieces

Soft jaws easy forming function allows for fast turning completion

Suitable for automated production, can choose from many types of automatic feed in systems



Specification TGL-30
Chuck O.D. 10" (12") inch
Max. swing diameter Ø650 mm
X/Z axis travel 300+1,660/600 mm
X/Z axis rapid traverse 30/30 m/min
Spindle nose A2-8
Spindle speed 3,500 rpm
Spindle motor 30/22 kW
Tool capacity 12 pc
