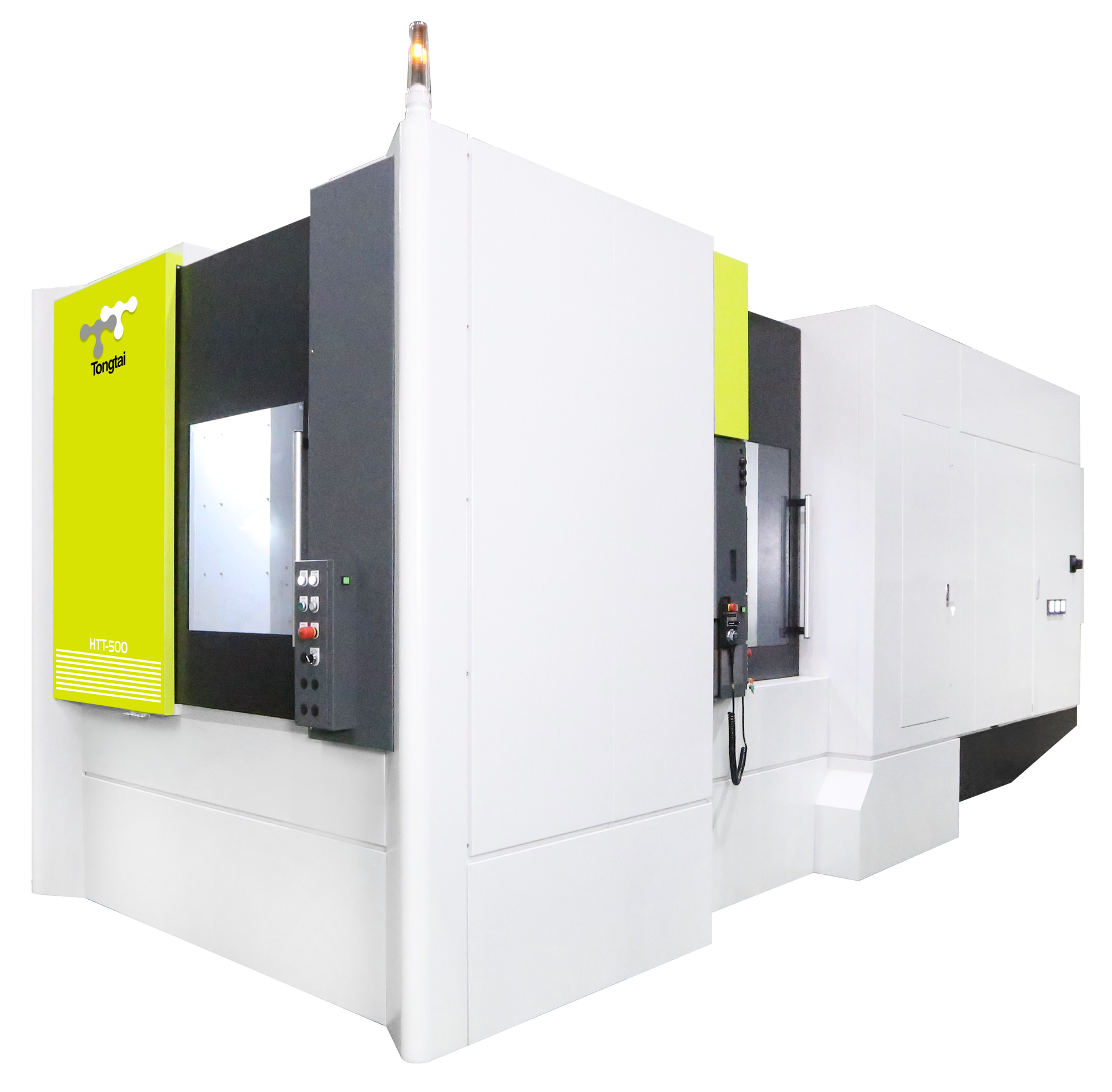

Home > Products > Machine Tool > 5-axis Horizontal Machining Center > 5-axis Machining > HTT-500Home > Products > Machine Tool > 5-axis Horizontal Machining Center > 5-axis Machining > HTT-500‧HTT-500, the 5-axis horizontal machining center, is Tongtai's new solution of process integration which will definitely meet the demands on high-mix low-volume manufacturing.
‧Excellent machine rigidity and stability to ensure high accuracy during precision machining.
‧Orthogonal mechanical coordinate system for easy programming and enhance the precision and efficiency of machining.
‧Central chip removal system effectively prevents the problem of internal temperature rise from accumulated cutting chips and reduces the environmental variables for higher precision.
‧Equipped with APC (auto pallet changer) system to shorten the machine idle time.
‧Built-in thermal compensation function to ensure ideal machining accuracy under different temperature conditions.
|
Item |
Unit |
HTT-500 |
|
Spindle |
rpm |
15,000 Built-in Spindle |
|
X/Y/Z Rapid Traverse |
m/min |
60 |
|
X/Y/Z travel |
mm |
X : 800 / Y : 800 / Z : 830 |
|
X/Y/Z Accel. & Decel. |
G |
X : 0.8 / Y : 0.8/ Z : 0.8 |
|
A Axis Travel |
deg |
+20 ~-120° |
|
B Axis Travel |
deg |
360° |
|
A/B Axis Speed |
rpm |
50 / 100 |
|
Working Table Size |
mm |
500 x 500 |
|
Max. Workpiece Dim |
mm |
Ø700 x H500 |
