Dual spindle and corresponding turning areas can operate independently
Separated machine bed structure, reducing resonance effects between both operating areas
Standard accessory has gantry type robot , it could arrive automation production.
1 TF unit can complete the procedures done by 2 lathes within a small area
Can increase utilization of an area while decreasing the manpower required
Item | TF-2500 |
O.D. of Chuck | 10" inch |
X/Z Axis Travel | 250/450 mm |
X/Z Axis Rapid Feed | 36/48 m/min |
Spindle nose | A2-8 |
Spindle speed | 4000 rpm |
Spindle motor | 15/11kW |
Tool Capacity | 12 pc |

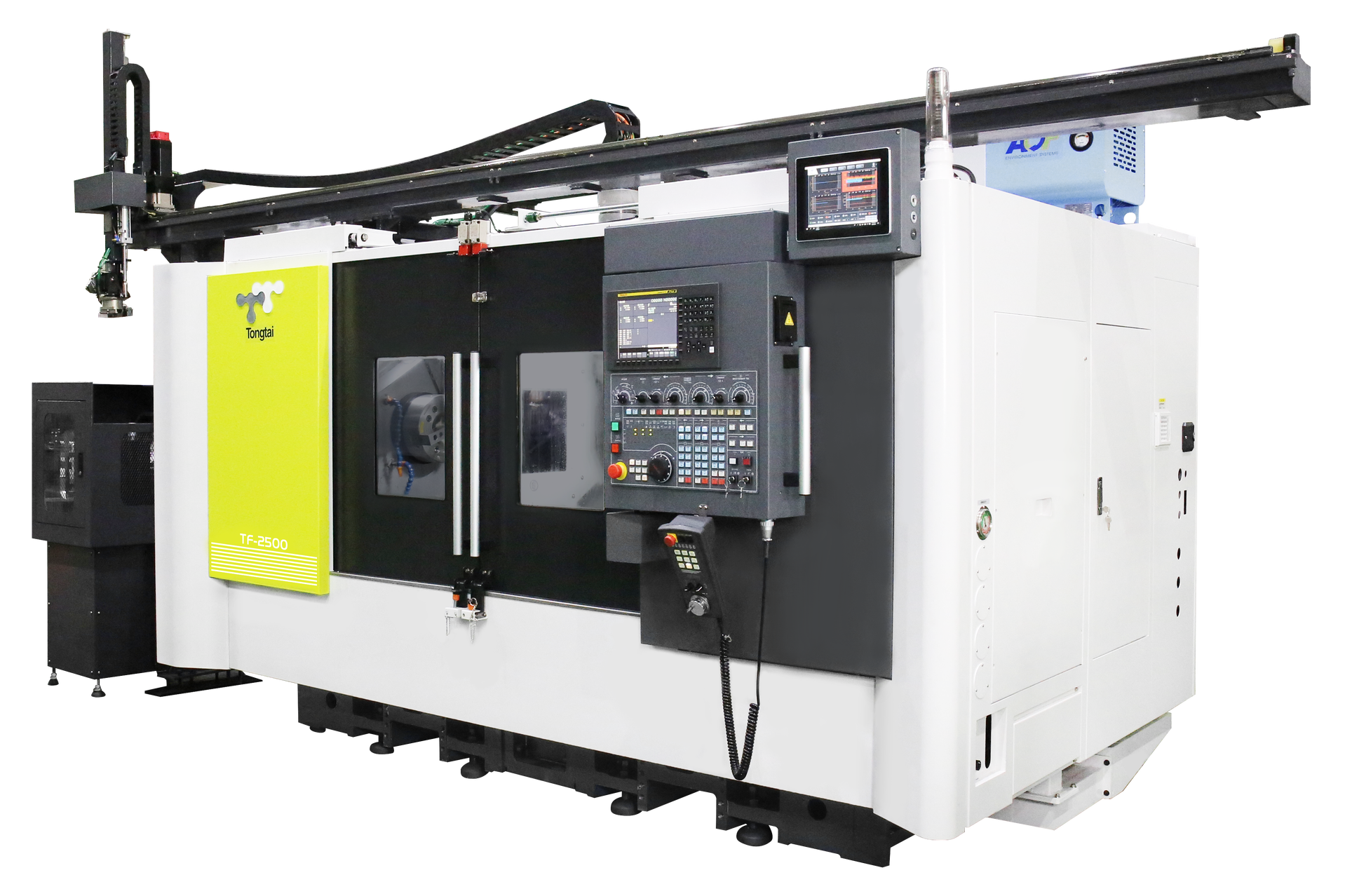

TF-2500
