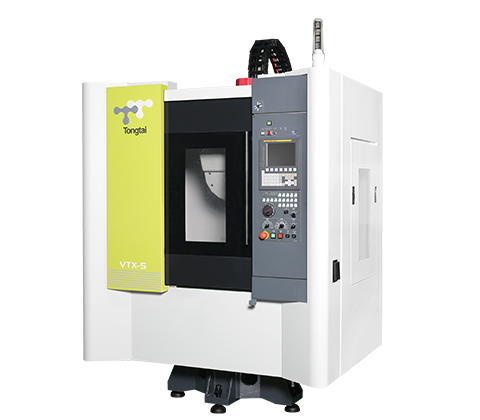

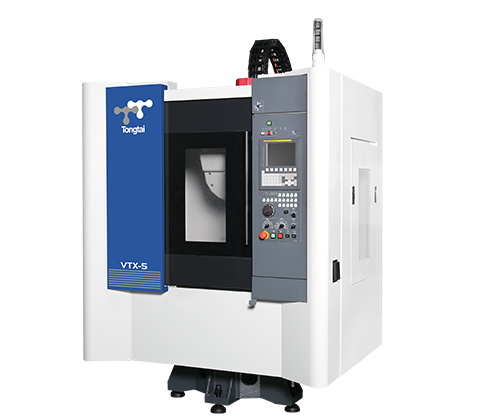

VTX-5[A]

Tapping Center

VTX-5[A]

High speed tool changer, only 1.2 seconds for T-T

High rigidity roller type linear guide way

Direct drive spindle design, high acceleration/deceleration reactivity, rigid tapping of up to 6,000rpm

Spindle shaft’s radius up to 50mm, enhancing cutting rigidity

Maximum torque for spindle motor of up to 82 N·m


Specification

Specification VTX-5[A]
Table size(LxW) 600x400 mm
Max. loading capacity 300 kg
X/Y/Z axis travel 510/400/300[350] mm
X/Y/Z axis rapid traverse 60/60/60 m/min
Spindle taper 7/24 Taper No.30
Spindle speed 12,000 rpm
Spindle motor 3.7/13kW
Tool capacity 16 (21) [20] pc
