Good heat dissipation capabilities even for long durations of heavy duty turning
Integrated cast design, machine structure has better vibration absorption while maintaining good precision

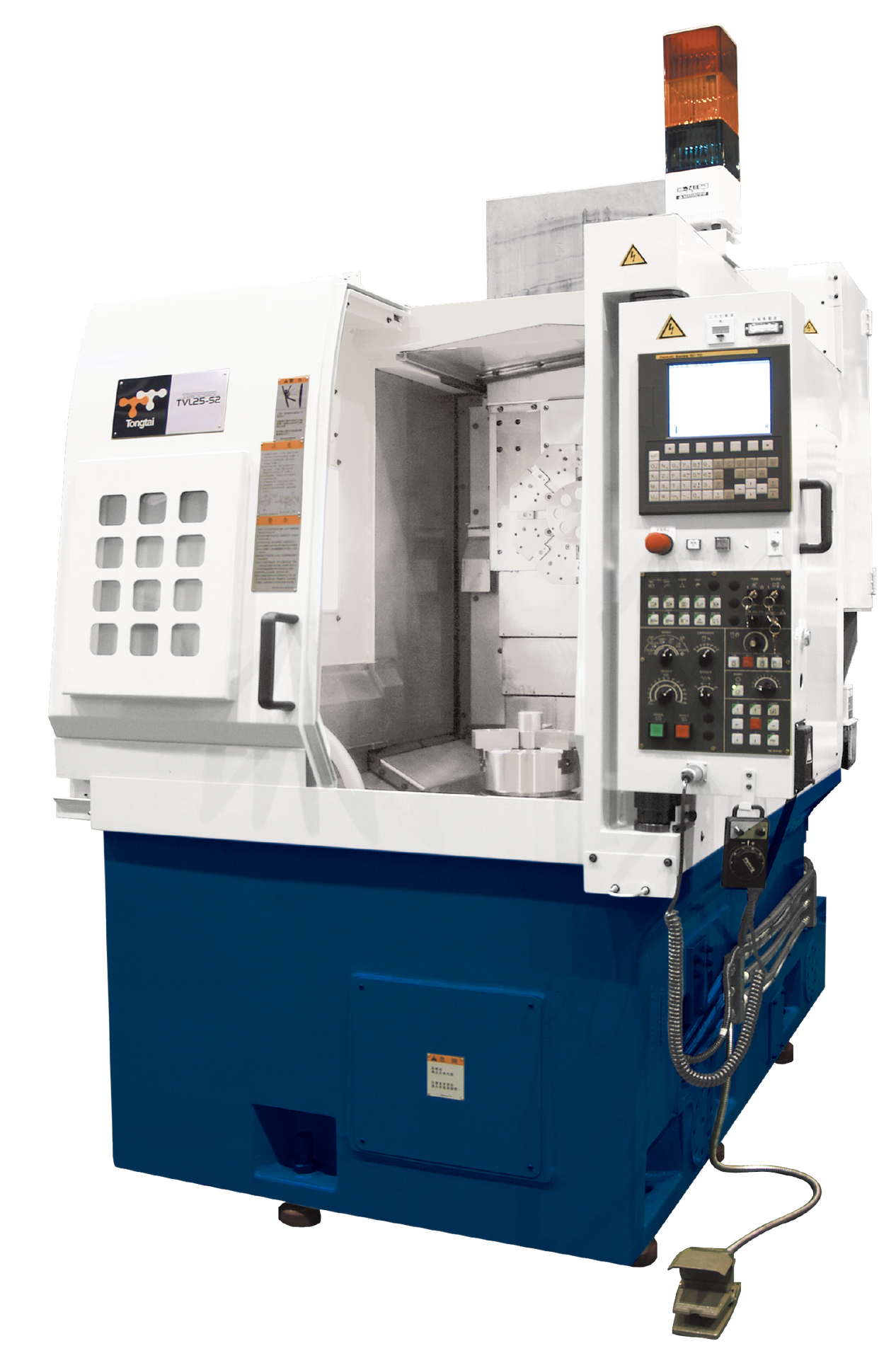

Vertical lathe designed for convenient operation, operators can easily load or unload workpieces, adjust tools and remove chips
Specification | TVL-25-S2 |
Chuck O.D. | 8" (10") inch |
Max. swing diameter | Ø370 mm |
X/Z axis travel | 290/400 mm |
X/Z axis rapid traverse | 30/24 m/min |
Spindle nose | A2-6 (A2-8) |
Spindle speed | 3,000 (2,250) rpm |
Spindle motor | 15/11 (18.5/15) kW |
Tool capacity | 8 pc |
