ホーム > 製品情報 > 切削加工設備 > 横型CNC旋盤 > 6"~8" > MT-1500[M]

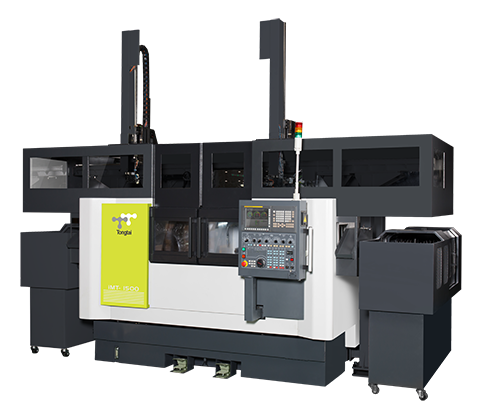

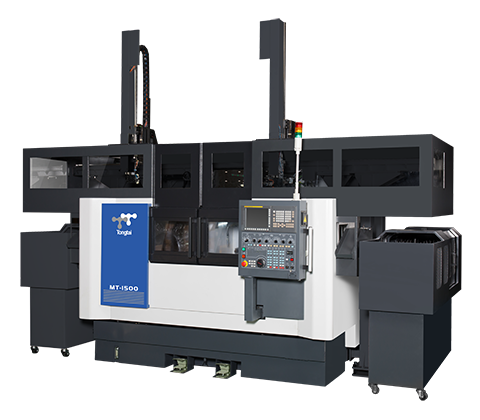

MT-1500[M]

横型CNC旋盤

MT-1500[M]

独立する平行配置2主軸と2刃物台

分離式ベッド構造同時加工時の振動伝播を低減

サーボモーター駆動(標準)による3軸門型ロボットで迅速なワーク搬出入を高速化

1台のMTで2台分の旋盤作業ができ、占用面積も小さい

面積使用率を向上し、人手も減らすことができる




カタログダウンロード

製品スペック

項目 MT-1500[M]
クリップ外径 6" inch
X/Z軸ストローク 155/155 mm
X/Z軸早送り 30/30 m/min
主軸端面形状 A2-5
主軸回転速度 4500 (6000) rpm
主軸モーター 11/7.5/5.5 kW
最大ツール数 12 (8) [VDI-40:12] pc

動画

MT-1500[M]
