ホーム > 製品情報 > プリント基板加工機 > NC穴あけ機 > NC穴あけ機 > SD-116

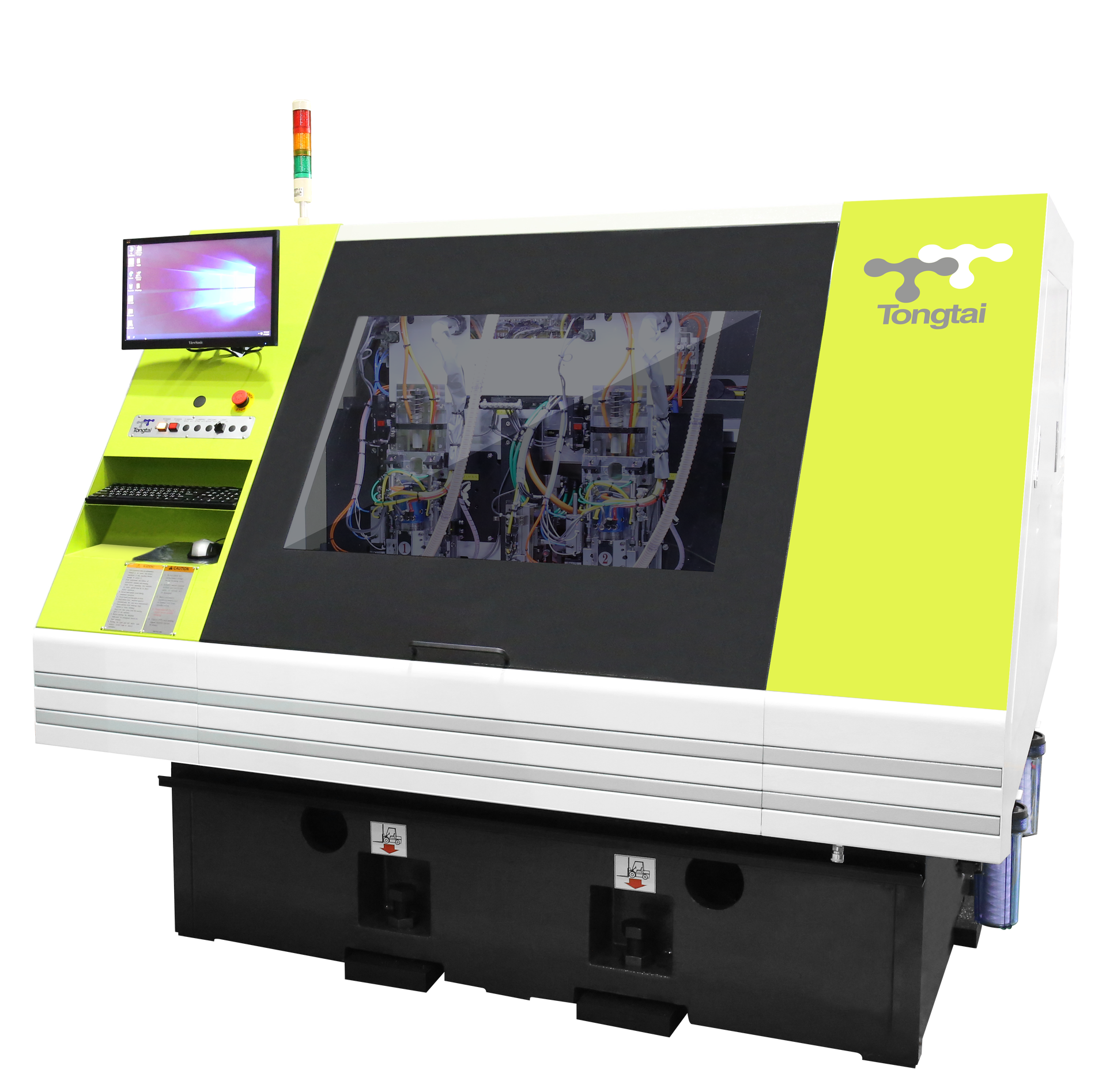

SD-116

NC穴あけ機

SD-116

高級鋳鉄の一体構造を採り、構造解析により、最適な剛性と制振制を確保、高精度加工を実現。

高速応答サーボモーター、高負荷、高精度のボールねじを採用、高い安定性を確保、小口径の加工に最適。

高剛性のツインスライダーを採用しドリル寿命が長くなりました。




カタログダウンロード

製品スペック

項目 SD-116
軸数 1
加工エリア 660x760 mm
最高回転数

160,000 rpm

(180,000) rpm

(200,000) rpm

(250,000) rpm

(300,000) rpm
ツール容量/軸 400 pc
ツール直径 0.1~6.35 mm
X/Y/Z移動速度 50/50/30 m/min
位置決め精度 ±0.005 mm
繰り返し精度 ±0.0025 mm
加工精度 ±0.018 mm
コントローラ SIEB & MEYER CNC 84.00
