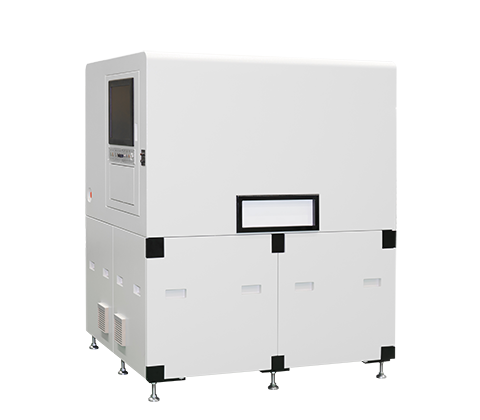

TLMG-400

Laser Processing Equipment

TLMG-400

Laser power factor (>5W @80kHz) is better than other firms Operation frequency range 1~300kHz, high repetitive frequency can reduce the impulse energy while allows for searching the best parameter The E-pulse function can effectively control the output energy under different frequencies




Download

Specification

Specification TLMG-400
Axis 1
Laser type Nd:YVO4 Q-switched laser
Wave length 532 mm
Max. Average power >5W @80 kHz W
Repetition frequency Single shot~300 kHz
Max. Working area 300x300 mm
Speed 50 m/min
Accuracy ±5 μm
Scanning area 160x160 mm
