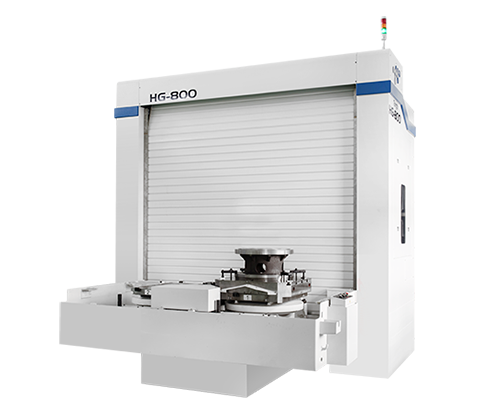

HG-800II

Horizontal Machining Center

HG-800II

Adopts high class cast iron for the best machine structure design

Complete box way slide made by high precision processing, high frequency induction hardening and precision grinding

Powerful servo motor, directly driving the precise ball screw, avoiding any transmission error

3-axis rapid traverse rate of up to 20 m/min

Spindle applies a two speed gear box with a maximum torque of up to 1,319 N m




Download

Specification

Specification HG-800II
Table size(LxW) 800x800 mm
Max. loading capacity 2000x2 kg
X/Y/Z axis travel 1120/1000/1250 mm
X/Y/Z axis rapid traverse 15/15/15 m/min
Spindle taper 7/24 Taper No.50
Spindle speed 6000 (8000) rpm
Spindle motor 21.5/18.5 (26/22) kW
Tool capacity 60 (90) (120) pc
