3-axis box way slide structural design, has both high rigidity and vibration absorption characteristics
Four box way slides design for Y axis , allowing complete support for saddle
Optional BT-50 spindle with gearbox design which can reach excellent heavy cutting capability
Z axis is equipped with a counterbalance system to reduce the loading while functioning Z axis's duty
Can support customized design, popular among automobile industry customers

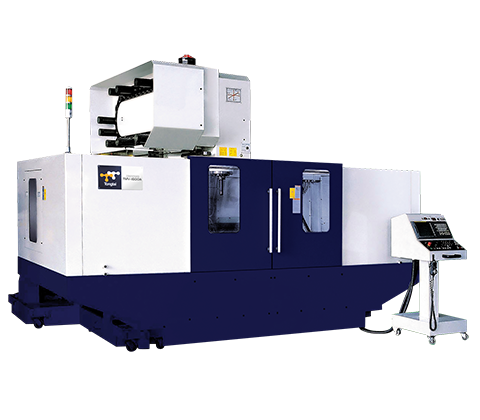

Specification | TMV-1600A |
Table size(LxW) | 1600x850 mm |
Max. loading capacity | 2000 kg |
X/Y/Z axis travel | 1600/800/700 mm |
X/Y/Z axis rapid traverse | 15/15/12 m/min |
Spindle tapper | 7/24 Taper No.50 |
Spindle speed |
3500 (6000) rpm |
Spindle motor | 18.5/15/11 (18.5/15/11) kW |
Tool capacity | 32 (40) pc |
