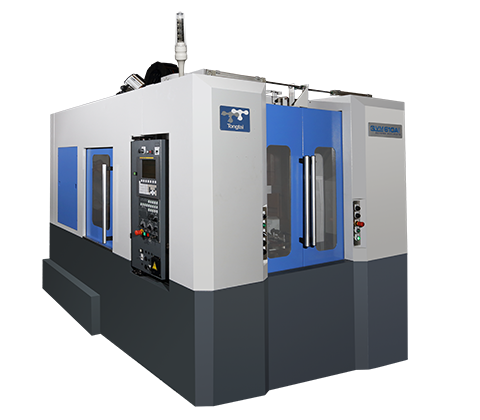

QVM-610AII

Vertical Machining Center

QVM-610AII

Moving column design

Equipped with automatic pallet changer system that can increase production efficiency

4 seconds only for pallet exchanging, reduce non-cutting time effectively

Pallet’s 3 point jig fixture support mechanism (Patented) can enhance processing accuracy

Maximum work table loading up to 400 kgx2




Download

Specification

Specification QVM-610AII
Table size(LxW) 700x410 mm
Max. loading capacity 400x2 kg
X/Y/Z axis travel 610/410/510 mm
X/Y/Z axis rapid traverse 36/36/30 m/min
Spindle taper 7/24 Taper No.40
Spindle speed 8000 (10000) rpm
Spindle motor 7.5/5.5 (9/7.5) kW
Tool capacity 24 (30) pc
