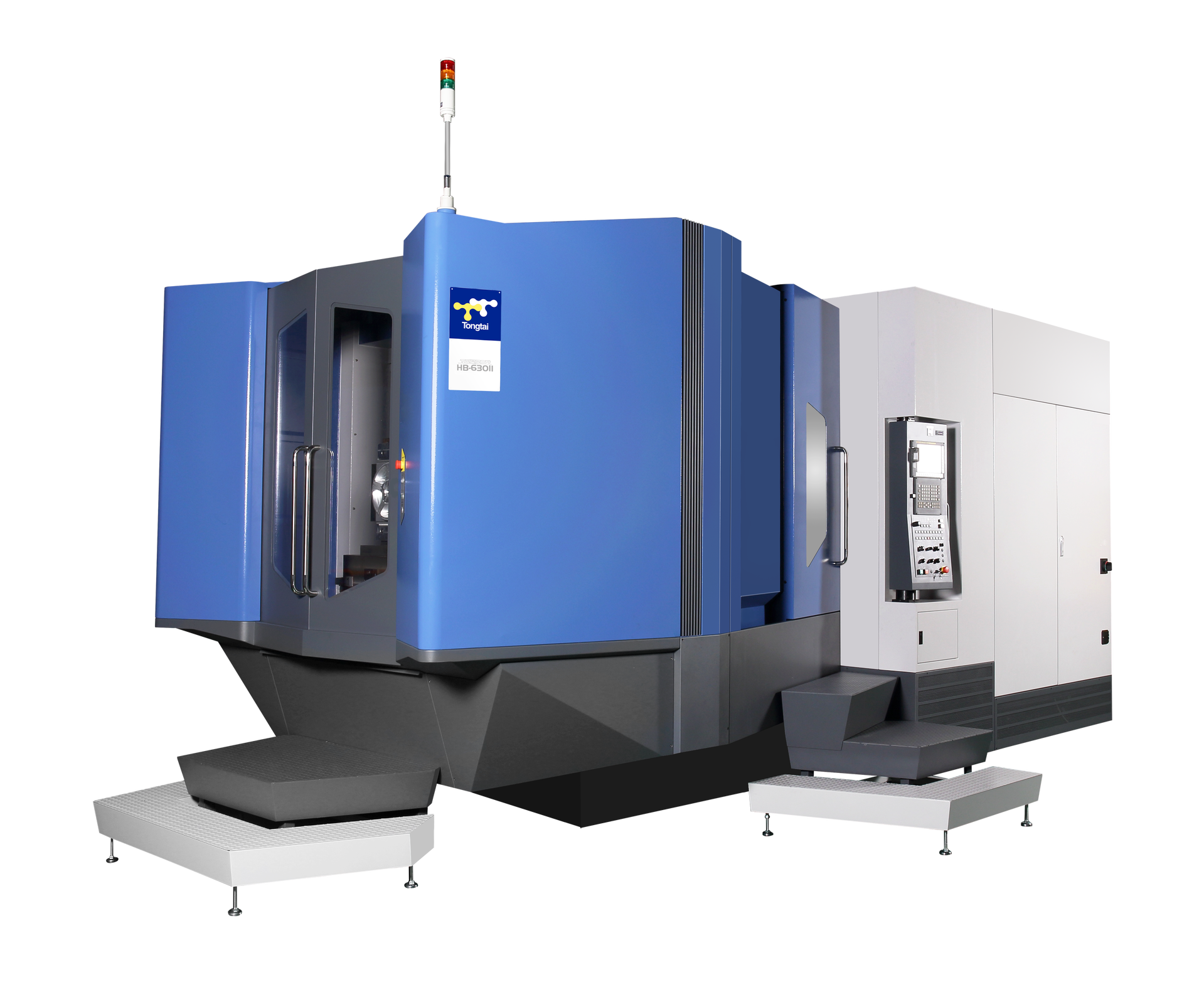

HB-630

Horizontal Machining Center

HB-630

Standard equipped 10,000rpm built-in spindle, able to perform surged torque which can reach 420Nm while running to 500rpm

B-axis rotary table adopted with hydraulic jig fixture, ensuring powerful clamping for stable cutting

Rotary table adopted with full circle brake, able to withstand heavy cutting with its large contact surface

Adopt high efficiency automated pallet changer system

Flexible manufacturing system available for option

Suitable for heavy cutting machining for metallic materials




Download

Specification

Specification HB-630
Table size(LxW) 630x630 mm
Max. loading capacity 1,200x2 kg
X/Y/Z axis travel 1,050/850/970 mm
X/Y/Z axis rapid traverse 50 m/min
Spindle taper 7/24 Taper No.50
Spindle speed 10,000 (8,000) (6,000) rpm
Spindle motor 30/25 (26/22) (22/18.5) kW
Tool capacity 60 (90) (120) pc
